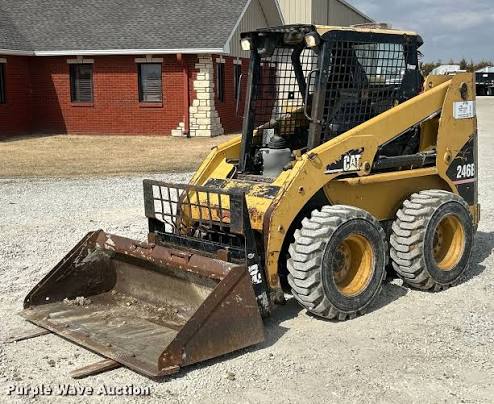

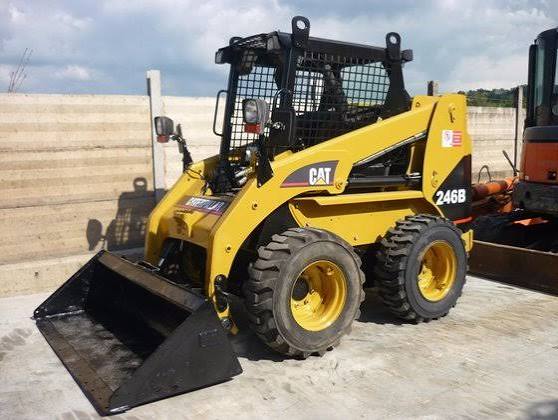

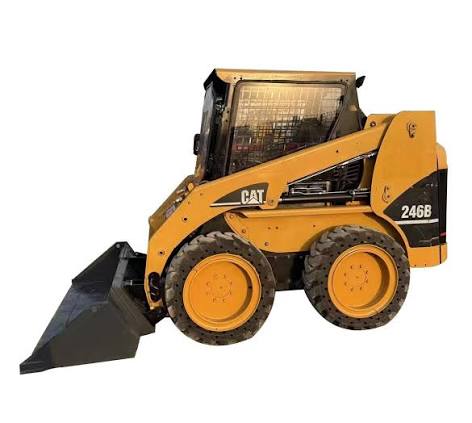

246B

Specifications

73 data points

Operating Specifications specifications
Operating Weight	7,141 lb
Max Speed	7.8 mph
Fuel Capacity	23.8 gal
Hydraulic System Fluid Capacity	13.8 gal
Tire Size	12x16.5 10PR
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Fluid Capacity	2.7 gal
Cooling System Fluid Capacity	2.7 gal
Chain Box Fluid Capacity - each side	1.9 gal
Breakout Force - Tilt Cylinder	5,484 lb
Rated Operating Capacity	2,000 lb
Tipping Load	4,188 lb
Rated Operating Capacity with Optional Counterweight	2,100 lb
Breakout Force - Lift Cylinder	4,656 lb

Weights specifications
Operating Weight	7,142 lb

Dimensions specifications
Ground Clearance	9 in
Wheelbase	46 in
Width Over Tires	66 in
Reach at Max Lift and Dump	21 in
Length with Bucket on Ground	138 in
Length with Bucket	139 in
Clearance at Max Lift and Dump	95 in
Turning Radius from Center - inc bucket	83 in
Turning Radius from Center - machine rear	64 in
Length w/o Bucket	110 in
Length - without Bucket	110 in
Wheel Base	46 in
Bucket Pin Height - Maximum Lift	122 in
Bucket Pin Height - Carry Position	10 in
Clearance at Maximum Lift and Dump	94 in
Maximum Overall Height	156 in
Reach - Maximum Lift/Dump	21 in
Turn Radius from Center - Coupler	52 in
Turn Radius from Center - Bucket	83 in
Maximum Reach - With Arms Parallel	53 in
Turn Radius from Center - Rear	64 in
Vehicle Width over Tires	66 in
Bumper Overhang - Rear Axle	41 in

Cab & Operator specifications
ROPS	SAE J1040 MAY94 and ISO3471:1994
FOPS	SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional)
