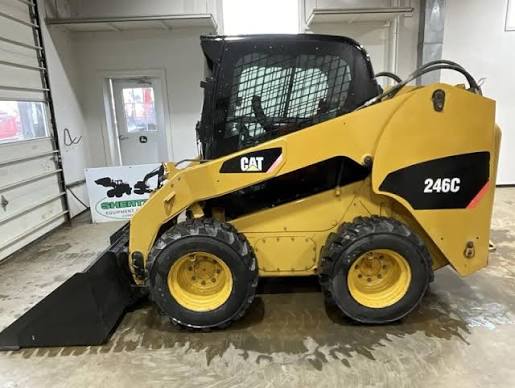

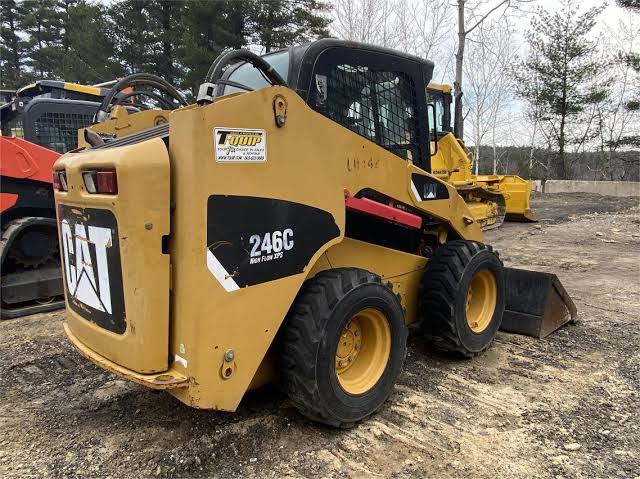

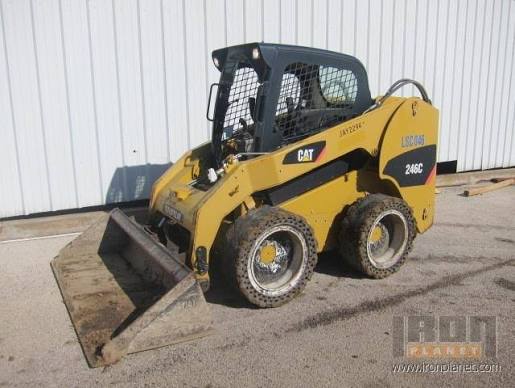

246C

Specifications

79 data points

Operating Specifications specifications
Operating Weight	7,381 lb
Max Speed	7.7 mph
Fuel Capacity	26.0 gal
Hydraulic System Fluid Capacity	15.0 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Fluid Capacity	2.6 gal
Cooling System Fluid Capacity	3.7 gal
Chain Box Fluid Capacity - each side	2.6 gal
Breakout Force - Tilt Cylinder	7,328 lb
Rated Operating Capacity	2,150 lb
Tipping Load	4,300 lb
Rated Operating Capacity with Optional Counterweight	2,350 lb

Weights specifications
Operating Weight	7,480 lb

Hydraulic System specifications
Pump Flow Capacity	22.0 gal/min
Relief Valve Pressure	3,335 psi
Loader Hydraulic Pressure	3,335 psi
Loader Hydraulic Flow	22.0 gal/min
Hydraulic Power	42.8 hp
Maximum Loader Hydraulic Flow	33.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	83 in
Wheelbase	49 in
Width Over Tires	66 in
Reach at Max Lift and Dump	24 in
Length with Bucket on Ground	145 in
Length with Bucket	146 in
Clearance at Max Lift and Dump	96 in
Turning Radius from Center - inc bucket	95 in
Turning Radius from Center - machine rear	59 in
Length w/o Bucket	124 in
Length - without Bucket	117 in
Wheel Base	49 in
Bucket Pin Height - Maximum Lift	124 in
Clearance at Maximum Lift and Dump	95 in
Maximum Overall Height	157 in
Bucket Pin Height - Carry Position	8 in
Reach - Maximum Lift/Dump	24 in
Turn Radius from Center - Bucket	85 in
Turn Radius from Center - Coupler	55 in
Turn Radius from Center - Rear	68 in
Maximum Reach - With Arms Parallel	55 in
Departure Angle	26 °
Maximum Dump Angle	40 °
Rack Back Angle - Maximum Height	85 °
Vehicle Width over Tires	66 in
Bumper Overhang - Rear Axle	43 in
