Caterpillar
ASV
PT-70
Compact Track Loader
32 specifications

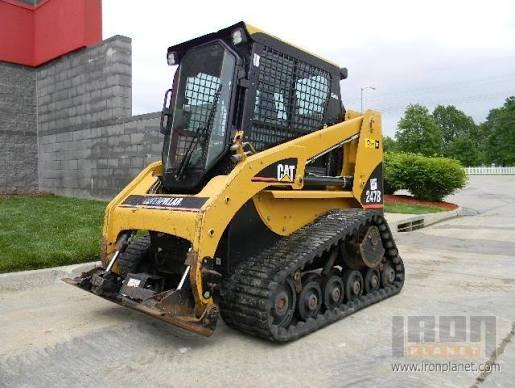

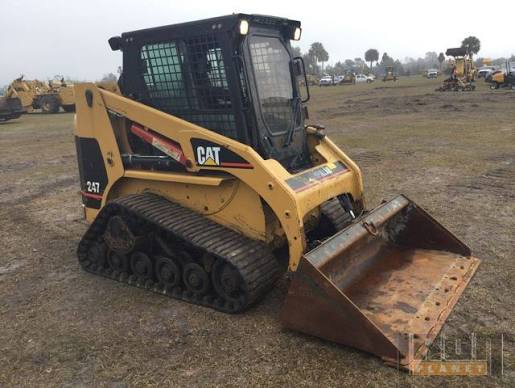

Caterpillar
247
- Operating Weight
- 6,629 lb
- Max Speed - high range
- 7.5 mph
- Displacement
- 183 in³
- Gross Power
- 58.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 6,629 lb |
|---|---|
| Max Speed - high range | 7.5 mph |
| Fuel Capacity | 16.4 gal |
| Hydraulic System Fluid Capacity | 14.6 gal |
| Breakout Force - Tilt Cylinder | 3,536 lb |
| Tipping Load | 3,865 lb |
| Rated Operating Capacities - 35% Tipping Load | 1,354 lb |
| Rated Operating Capacities - 50% Tipping Load | 1,993 lb |
| Ground Contact Area | 1,770 in³ |
| Ground Pressure | 4 psi |
| Breakout Force - Lift Cylinder | 3,011 lb |
Engine
| Engine Model | Cat 3034 naturally aspirated |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 58.0 hp |
| Net Power | 54.0 hp |
| Number of Cylinders | 4 |
| Stroke | 4 in |
| Bore | 4 in |
Weights
| Operating Weight | 6,665 lb |
|---|
Hydraulic System
| Pump Flow | 14.4 gal/min |
|---|
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 79 in |
| Reach at Max Lift and Dump | 25 in |
| Width Over Tracks | 66 in |
| Length with Bucket | 131 in |
| Clearance at Max Lift and Dump | 83 in |
| Turning Radius from Center - inc bucket | 85 in |
| Length - without Bucket | 100 in |
Undercarriage
| Length of Track on Ground | 60 in |
|---|---|
| Width of Track | 15 in |
Loader
| Bucket Capacity | 0.50 yd³ |
|---|---|
| Tipping Angle | 3,779 ° |
| Operating Load | 2,100 lb |
Service Refill Capacities
| Cooling System | 2.6 gal |
|---|---|
| Hydraulic Tank | 9.2 gal |
| Fuel Tank | 17.0 gal |
| Engine Crankcase | 1.8 gal |
| Hydraulic System | 14.5 gal |
Power Train
| Travel Speed Forward | 7.5 mph |
|---|---|
| Travel Speed Reverse | 7.5 mph |
