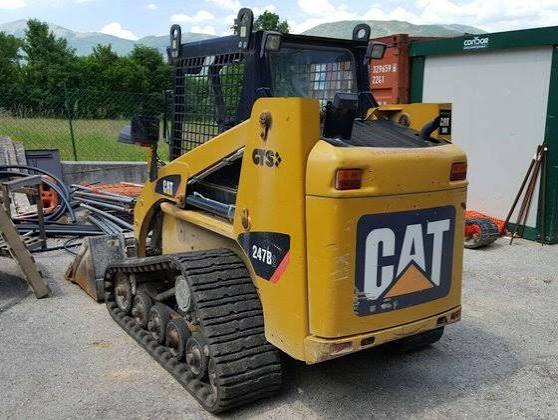

Caterpillar
247B
- Operating Weight
- 6,667 lb
- Max Speed - high range
- 7.6 mph
- Displacement
- 134 in³
- Gross Power
- 61.7 hp
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 6,667 lb |
|---|---|
| Max Speed - high range | 7.6 mph |
| Fuel Capacity | 17.2 gal |
| Hydraulic System Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 2.7 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 85 A |
| Engine Oil Capacity | 2.2 gal |
Engine
| Engine Model | 3024C T |
|---|---|
| Displacement | 134 in³ |
| Gross Power | 61.7 hp |
| Net Power | 57.7 hp |
| Aspiration | turbocharged |
Hydraulic System
| Pump Flow | 15.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,336 psi |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 79 in |
| Reach at Max Lift and Dump | 25 in |
| Width Over Tracks | 66 in |
| Length with Bucket | 130 in |
| Clearance at Max Lift and Dump | 85 in |
| Turning Radius from Center - inc bucket | 85 in |
| Turning Radius from Center - machine rear | 53 in |
| Length - without Bucket | 100 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 60 in |
| Ground Contact Area | 1,767 in³ |
Loader
| Tipping Angle | 3,907 ° |
|---|---|
| Operating Load | 1,951 lb |
| Breakout Force | — |
