Caterpillar
Case
440
Skid Steer Loader
32 specifications
1 / 5

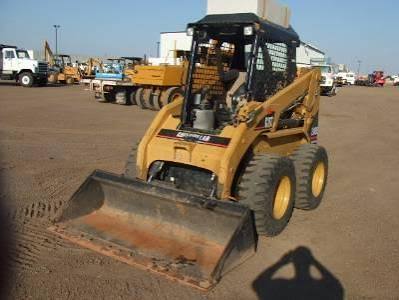

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 7,530 lb |
|---|---|
| Max Speed | 7.6 mph |
| Fuel Capacity | 23.8 gal |
| Hydraulic System Fluid Capacity | 14.1 gal |
| Operating Speed | 7.6 mph |
| Breakout Force - Tilt Cylinder | 5,261 lb |
| Rated Operating Capacity | 2,000 lb |
| Tipping Load | 4,000 lb |
| Rated Operating Capacity with Optional Counterweight | 2,100 lb |
| Breakout Force - Lift Cylinder | 4,308 lb |
Engine
| Engine Model | Cat 3034C |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 74.0 hp |
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Stroke | 4 in |
| Bore | 4 in |
| Net Flywheel Power | 55.0 hp |
Weights
| Operating Weight | 7,338 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 33.1 gal/min |
|---|---|
| Loader Hydraulic Pressure | 4,200 psi |
| Loader Hydraulic Flow | 33.0 gal/min |
| Hydraulic Flow | Standard flow |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 83 in |
| Wheelbase | 46 in |
| Width Over Tires | 73 in |
| Reach at Max Lift and Dump | 23 in |
| Length with Bucket on Ground | 138 in |
| Length with Bucket | 139 in |
| Clearance at Max Lift and Dump | 95 in |
| Turning Radius from Center - inc bucket | 87 in |
| Length w/o Bucket | 110 in |
| Length - without Bucket | 110 in |
| Wheel Base | 46 in |
| Bucket Pin Height - Maximum Lift | 122 in |
| Bucket Pin Height - Carry Position | 120 in |
| Clearance at Maximum Lift and Dump | 94 in |
| Maximum Overall Height | 156 in |
| Reach - Maximum Lift/Dump | 21 in |
| Vehicle Width over Tires | 66 in |
| Bumper Overhang - Rear Axle | 41 in |
Cab & Operator
| FOPS | SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
|---|---|
| ROPS | SAE J1040 MAY94 and ISO3471:1994 |
| FOPS Level II | SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Operating Load Rating | 2,000 lb |
| Tipping Angle | 3,810 ° |
Service Refill Capacities
| Cooling System | 2.6 gal |
|---|---|
| Hydraulic Tank | 9.2 gal |
| Fuel Tank | 23.8 gal |
| Chain Box - Each Side | 2.0 gal |
| Engine Crankcase | 1.8 gal |
| Hydraulic System | 13.7 gal |
