Caterpillar

24H

Motor Grader

Max Power
500.0 hp
Net Power Gear 5-6
500.0 hp
All motor graders

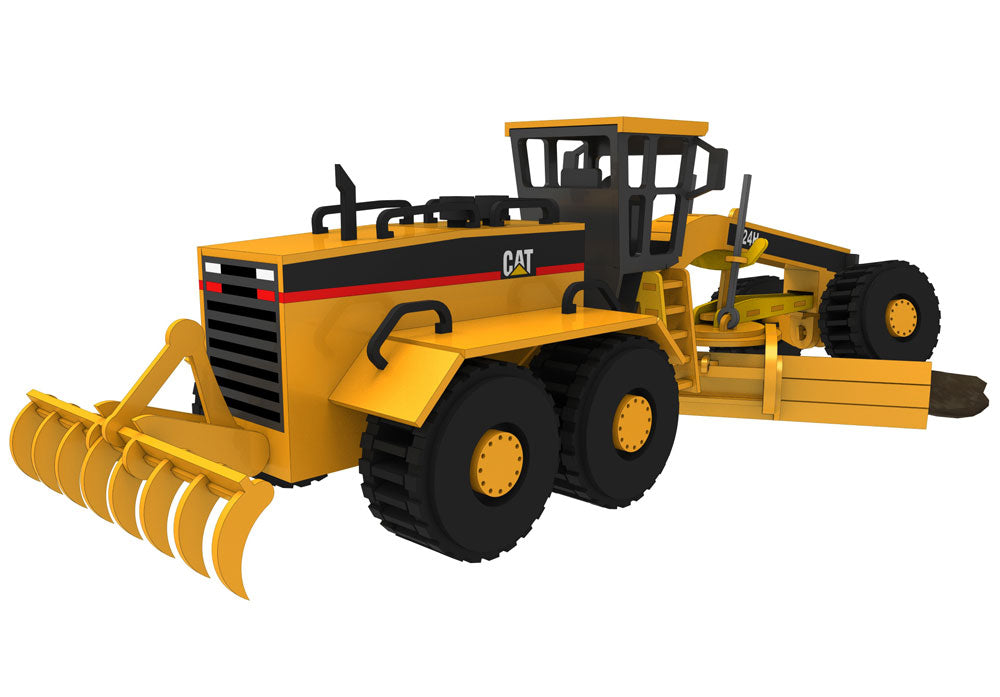

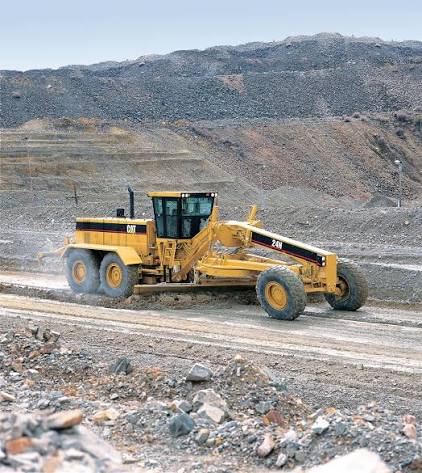

Caterpillar 24H Motor Grader
1 / 5
Image 1 of 5
Image: birdswoodshack.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total136,576 lb
Tire Size29.5-29
Fuel Capacity318.9 gal
Hydraulic System Fluid Capacity66.1 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A

Engine

Engine specifications
Engine Model3412E HEUI
Displacement1,648 in³
Max Power500.0 hp
Net Power Gear 5-6500.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow134.2 gal/min
Pump TypeAxial Piston
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Wheelbase403 in
Overall Length558 in
Width Over Tires167 in
Height to Top of Isomount Cab172 in
Blade Base161 in

Transmission

Transmission specifications
Max Speed - Forward23.5 mph
Max Speed - Reverse22.5 mph
Number of Gears - Forward6
Number of Gears - Reverse3

Moldboard

Moldboard specifications
Moldboard Height42 in
Moldboard Width289 in
Moldboard Thickness2 in

Circle

Circle specifications
Max Lift Above Ground25 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °

Steering System

Steering System specifications
Turning Radius473 in
Articulation Angle25 °
