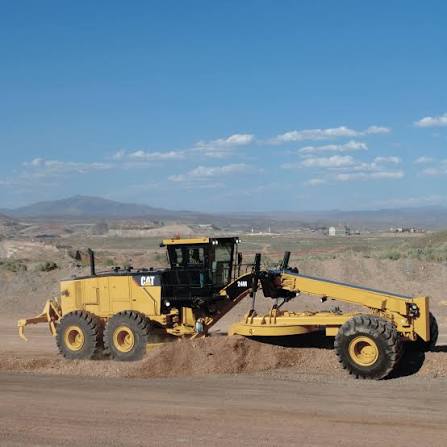

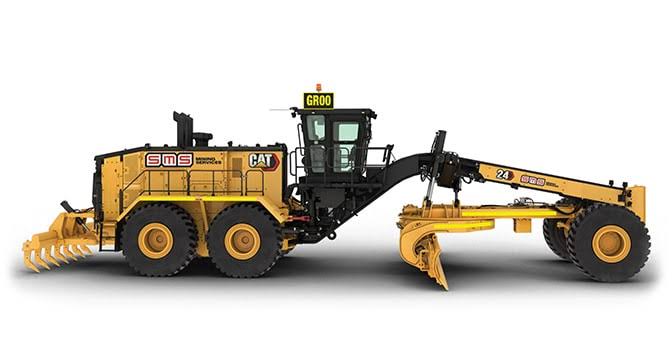

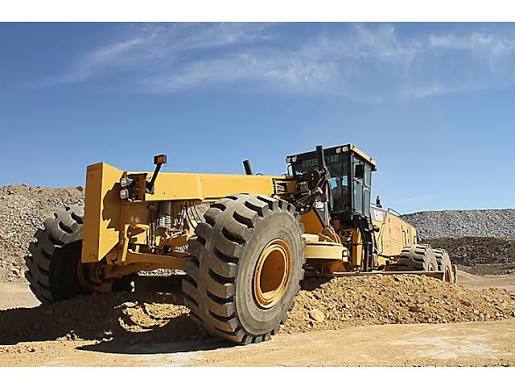

24M

Specifications

168 data points

Operating Specifications specifications
Operating Weight	137,694 lb
Max Operation Weight - Total	145,808 lb
Max Operation Weight - Front Axle	43,931 lb
Max Operation Weight - Rear Axle	101,877 lb
Std Operation Weight - Total	137,692 lb
Tire Size	29.5-29 28PR
Fuel Capacity	350.0 gal
Std Operation Weight - Front Axle	41,360 lb
Std Operation Weight - Rear Axle	96,332 lb
Hydraulic System Fluid Capacity	70.0 gal
Tandem Case Fluid Capacity (each)	85.0 gal
Cooling System Fluid Capacity	24.0 gal
Circle Gearbox Fluid Capacity	2.3 gal
Rear Diff/Final Drive Fluid Capacity	49.0 gal
Articulation Angle - Left/Right	25 °
Forward - 1st	2.3 mph
Forward - 2nd	3.5 mph
Forward - 3rd	6.0 mph
Forward - 4th	9.3 mph
Forward - 5th	17.2 mph
Forward - 6th	26.7 mph
Reverse - 1st	3
Reverse - 2nd	8.9 mph
Reverse - 3rd	25.6 mph
Steering Range - Left/Right	48 °
Top Speed - Forward	27.0 mph
Top Speed - Reverse	25.8 mph
Turning Radius - Outside Front Tires	489 in

Engine specifications
Engine Model	Cat C18 ACERT
Displacement	1,105 in³
Power Measured @	2,000 rpm
Number of Cylinders	6
Bore	6 in
Stroke	7 in
Max Power	533.0 hp
Net Power Gears 7-8	533.0 hp
Net Torque Gears 7-8	1,762 lb-ft
Net Power Gear 5-6	533.0 hp
Net Power Gear 1-2	533.0 hp
Net Power Gear 4-6	533.0 hp
Base Power (1st Gear) - Net	533.0 hp
Derating Altitude	66,000 in
Maximum Torque	1,762 lb-ft
Standard - Ambient Capability	122 °
Base Power (All Gears) - Net	533.0 hp

Weights specifications
Operating Weight - Typically Equipped	145,151 lb
Gross Vehicle Weight - Maximum - Front Axle	45,856 lb
Gross Vehicle Weight - Maximum - Rear Axle	107,001 lb
Gross Vehicle Weight - Maximum - Total	152,857 lb
Gross Vehicle Weight - Base - Front Axle	42,177 lb
Gross Vehicle Weight - Base - Rear Axle	96,110 lb
Gross Vehicle Weight - Base - Total	138,287 lb
Gross Vehicle Weight - Typically Equipped - Front Axle	43,100 lb
Gross Vehicle Weight - Typically Equipped - Total	145,151 lb
Gross Vehicle Weight - Typically Equipped	145,151 lb

Hydraulic System specifications
Pump Flow	145.0 gal/min
Pump Type	Variable piston
Relief Valve Pressure	3,500 psi
Maximum system pressure	3,500 psi
Circuit Type	Electro-hydraulic load sensing closed center
Pump Output	145.0 gal/min
Standby Pressure	450 psi

Dimensions specifications
Height - Top of Cab	176 in
Wheelbase	406 in
Overall Length	559 in
Width Over Tires	169 in
Height to Top of Isomount Cab	172 in
Blade Base	159 in
Tandem Axle Wheelbase	90 in
Front Ground Clearance	35 in
Rear Ground Clearance	20 in
Width - Outside Rear Tires	166 in
Height - Top of Cylinders	151 in
Width - Tire Center Lines	136 in
Height - Exhaust Stack	170 in
Length - Front Tire to Rear of Machine	559 in
Ground Clearance - Rear Axle	24 in
Height - Front Axle Center	34 in
Width - Outside Front Tires	169 in
Length - Front Axle to Moldboard	159 in
Length - Front Axle to Mid Tandem	405 in
Length - Between Tandem Axles	90 in
Length - Counterweight to Ripper	634 in

Transmission specifications
Max Speed - Forward	26.7 mph
Max Speed - Reverse	25.6 mph
Number of Gears - Forward	6
Number of Gears - Reverse	3
Transmission Type	automatic electronic power shift

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left	127 in
Maximum Shoulder Reach Outside of Tires - Right	127 in
Moldboard Sideshift - Left	178 in
Moldboard Sideshift - Right	193 in
Maximum Lift Above Ground	25 in
Blade Tip Range - Backward	0 °
Blade Tip Range - Forward	40 °
Circle Centershift - Left	210 in
Circle Centershift - Right	210 in
Maximum Blade Position Angle	35 °
Maximum Depth of Cut	26 in

Circle specifications
Max Lift Above Ground	25 in
Max Reach Outside Tires - Left	127 in
Max Reach Outside Tires - Right	128 in
Diameter	104 in
Blade Tip Angle - Front	40 °
Shift Left	32 in
Shift Right	17 in

Steering System specifications
Turning Radius	489 in
Articulation Angle	25 °

Power Train specifications
Brakes - Parking	Spring applied hydraulically released
Brakes - Secondary	Oil-actuated oil-disc
Brakes - Service	Oil-actuated oil-disc
Brakes - Service - Surface Area	15,733 in³
Forward/Reverse Gears	6 Forward/3 Reverse
Transmission	Automatic electronic power shift

Service Refill specifications
Cooling System	24.0 gal
Circle Drive Housing	2.0 gal
Engine Oil	16.0 gal
Front Wheel Spindle Bearing Housing	1.0 gal
Fuel Capacity	350.0 gal
Hydraulic System - Tank	36.0 gal
Tandem Housing - Each	85.0 gal
Transmission - Differential - Final Drives	49.0 gal
Hydraulic System - Total	70.0 gal

Ripper specifications
Penetration Force	29,985 lb
Pry-Out Force	41,052 lb
Ripper Shank Holders	7
Ripping Depth - Maximum	18 in
Shank Holder Spacing - Maximum	24 in
Shank Holder Spacing - Minimum	23 in

Frame specifications
Circle - Blade Beam Thickness	6 in
Circle - Diameter	104 in
Drawbar - Height	9 in
Front Axle - Height to Center	32 in
Front Axle - Total Oscillation per Side	32 °
Front Axle - Wheel Lean - Left/Right	18 °
Drawbar - Width	9 in
Drawbar - Thickness	1 in
Front-Top/Bottom Plate - Thickness	2 in
Front-Top/Bottom Plate - Width	20 in

Tandems specifications
Drive Chain Pitch	3 in
Height	41 in
Sidewall Thickness - Inner	1 in
Sidewall Thickness - Outer	1 in
Tandem Oscillation - Front Down	20 °
Tandem Oscillation - Front Up	20 °
Wheel Axle Spacing	90 in
Width	14 in
