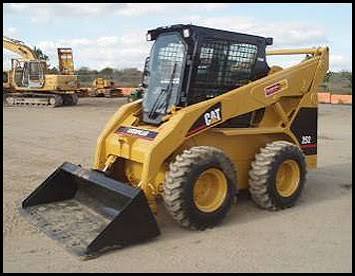

252B II

Specifications

75 data points

Operating Specifications specifications
Operating Weight	7,861 lb
Max Speed	7.0 mph
Fuel Capacity	23.8 gal
Hydraulic System Fluid Capacity	14.0 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Fluid Capacity	2.6 gal
Cooling System Fluid Capacity	2.6 gal
Chain Box Fluid Capacity - each side	2.1 gal
Breakout Force - Tilt Cylinder	5,508 lb
Rated Operating Capacity	2,500 lb
Tipping Load	5,000 lb
Rated Operating Capacity with Optional Counterweight	2,550 lb

Weights specifications
Operating Weight	7,861 lb

Dimensions specifications
Ground Clearance	8 in
Height - Top of Cab	83 in
Wheelbase	49 in
Width Over Tires	72 in
Reach at Max Lift and Dump	33 in
Length with Bucket on Ground	142 in
Length with Bucket	143 in
Clearance at Max Lift and Dump	96 in
Turning Radius from Center - inc bucket	86 in
Turning Radius from Center - machine rear	67 in
Length w/o Bucket	115 in
Length - without Bucket	114 in
Wheel Base	48 in
Bucket Pin Height - Maximum Lift	126 in
Clearance at Maximum Lift and Dump	95 in
Maximum Overall Height	160 in
Bucket Pin Height - Carry Position	8 in
Reach - Maximum Lift/Dump	33 in
Turn Radius from Center - Bucket	86 in
Turn Radius from Center - Coupler	52 in
Maximum Reach - With Arms Parallel	52 in
Turn Radius from Center - Rear	67 in
Rack Back Angle - Maximum Height	87 °
Departure Angle	26 °
Maximum Dump Angle	51 °
Vehicle Width over Tires	72 in
Bumper Overhang - Rear Axle	41 in
Bucket Pin Reach - Maximum Lift	14 in
