Caterpillar
ASV
PT-70
Compact Track Loader
32 specifications
Caterpillar
257
- Operating Weight
- 7,676 lb
- Max Speed - high range
- 7.0 mph
- Displacement
- 183 in³
- Gross Power
- 63.0 hp
1 / 5

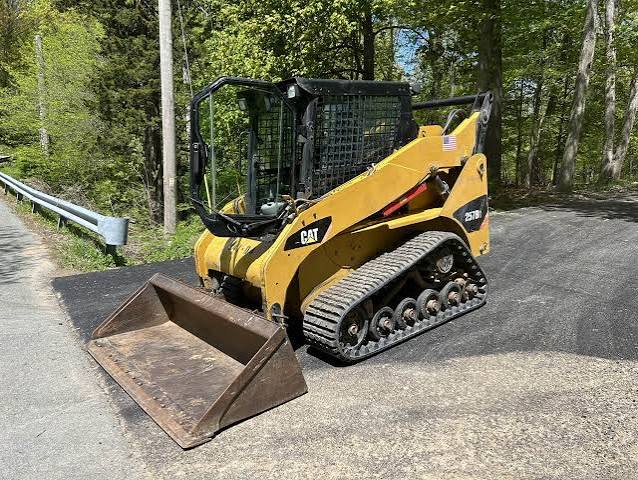

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 7,676 lb |
|---|---|
| Max Speed - high range | 7.0 mph |
| Fuel Capacity | 23.8 gal |
| Hydraulic System Fluid Capacity | 14.6 gal |
| Breakout Force - Tilt Cylinder | 3,532 lb |
| Tipping Load | 4,610 lb |
| Rated Operating Capacities - 35% Tipping Load | 1,614 lb |
| Rated Operating Capacities - 50% Tipping Load | 2,306 lb |
| Ground Contact Area | 1,770 in³ |
| Ground Pressure | 4 psi |
| Breakout Force - Lift Cylinder | 3,490 lb |
Engine
| Engine Model | Cat 3034 naturally aspirated |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 63.0 hp |
| Net Power | 59.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Stroke | 4 in |
| Bore | 4 in |
Weights
| Operating Weight | 7,628 lb |
|---|
Hydraulic System
| Pump Flow | 15.2 gal/min |
|---|
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 80 in |
| Reach at Max Lift and Dump | 32 in |
| Width Over Tracks | 66 in |
| Length with Bucket | 139 in |
| Clearance at Max Lift and Dump | 90 in |
| Turning Radius from Center - inc bucket | 90 in |
| Length - without Bucket | 107 in |
Undercarriage
| Length of Track on Ground | 60 in |
|---|---|
| Width of Track | 15 in |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Tipping Angle | 4,473 ° |
| Operating Load | 2,350 lb |
Service Refill Capacities
| Cooling System | 2.6 gal |
|---|---|
| Hydraulic Tank | 9.2 gal |
| Fuel Tank | 23.8 gal |
| Engine Crankcase | 1.8 gal |
| Hydraulic System | 14.5 gal |
Power Train
| Travel Speed Forward | 7.5 mph |
|---|---|
| Travel Speed Reverse | 7.5 mph |
