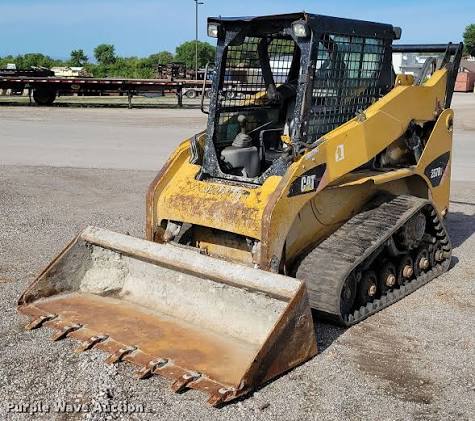

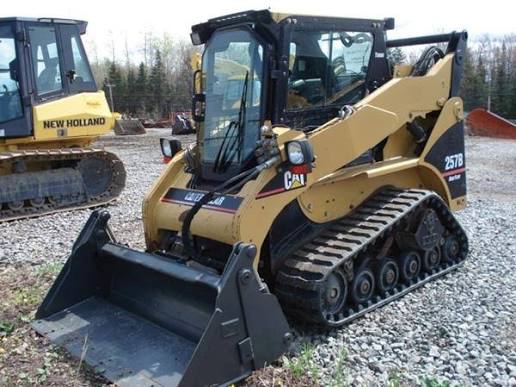

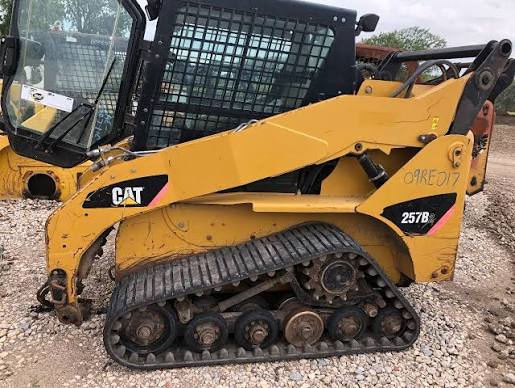

257B2

Specifications

63 data points

Operating Specifications specifications
Max Speed - high range	7.0 mph
Max Speed - low range	6.9 mph
Fuel Capacity	22.2 gal
Hydraulic System Fluid Capacity	14.6 gal
Cooling System Fluid Capacity	2.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	85 A
Engine Oil Capacity	2.7 gal
Breakout Force - Tilt Cylinder	3,954 lb
Tipping Load	5,350 lb
Rated Operating Capacities - 35% Tipping Load	1,870 lb

Weights specifications
Operating Weight	8,060 lb

Hydraulic System specifications
Pump Flow	15.9 gal/min
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	30.4 hp
Loader Hydraulic Flow	15.6 gal/min
Hydraulic Flow (1)	Standard
Maximum Loader Hydraulic Flow	26.0 gal/min
Maximum Loader Hydraulic Pressure	3,335 psi
Hydraulic Power - Calculated	60.3 hp

Dimensions specifications
Height - Top of Cab	80 in
Reach at Max Lift and Dump	30 in
Length with Bucket on Ground	135 in
Width Over Tracks	66 in
Length with Bucket	135 in
Clearance at Max Lift and Dump	90 in
Turning Radius from Center - inc bucket	86 in
Turning Radius from Center - machine rear	57 in
Bucket Pin Height - Maximum Lift	120 in
Bucket Pin Height - Carry Position	8 in
Maximum Overall Height	153 in
Clearance at Maximum Lift and Dump	90 in
Turn Radius from Center - Coupler	56 in
Turn Radius from Center - Bucket	86 in
Turn Radius from Center - Rear	57 in
Maximum Reach - With Arms Parallel	53 in
Rack Back Angle - Maximum Height	87 °
Departure Angle	37 °
Maximum Dump Angle	50 °
Length - Track on Ground	59 in
Overall Length - Track	75 in
Reach at Maximum Lift/Dump	30 in
Vehicle Width	66 in
