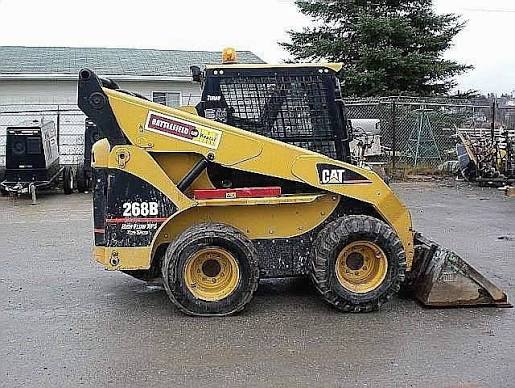

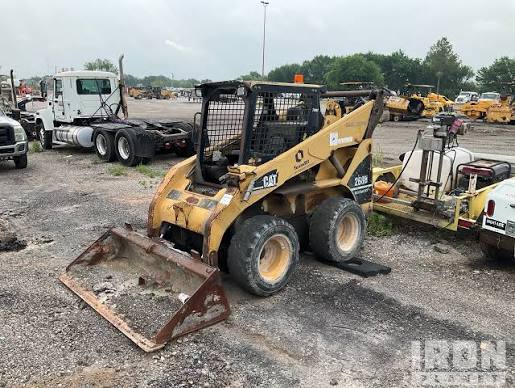

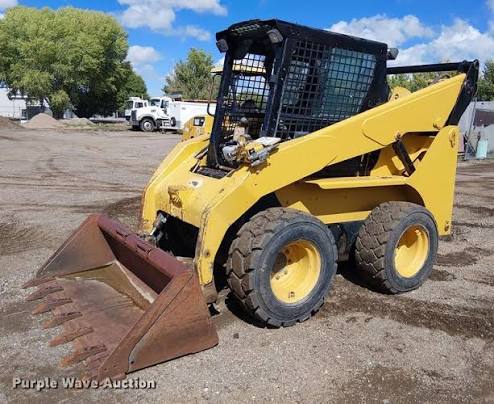

268B

Specifications

75 data points

Operating Specifications specifications
Operating Weight	7,994 lb
Max Speed	7.3 mph
Fuel Capacity	23.8 gal
Hydraulic System Fluid Capacity	14.1 gal
Tire Size	12x16.5 10PR
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Fluid Capacity	2.7 gal
Cooling System Fluid Capacity	2.7 gal
Chain Box Fluid Capacity - each side	2.2 gal
Breakout Force - Tilt Cylinder	5,508 lb
Rated Operating Capacity	2,700 lb
Tipping Load	5,613 lb
Rated Operating Capacity with Optional Counterweight	2,750 lb
Breakout Force - Lift Cylinder	5,192 lb

Weights specifications
Operating Weight	7,995 lb

Hydraulic System specifications
Pump Flow Capacity	33.1 gal/min
Relief Valve Pressure	4,061 psi
Loader Hydraulic Pressure	4,061 psi
Loader Hydraulic Flow	33.0 gal/min
Hydraulic Flow	High Flow XPS
Hydraulic Power	78.2 hp
Maximum Loader Hydraulic Flow	33.0 gal/min
Maximum Loader Hydraulic Pressure	4,060 psi

Dimensions specifications
Ground Clearance	8 in
Wheelbase	49 in
Width Over Tires	73 in
Reach at Max Lift and Dump	33 in
Length with Bucket on Ground	142 in
Length with Bucket	143 in
Clearance at Max Lift and Dump	96 in
Turning Radius from Center - inc bucket	86 in
Turning Radius from Center - machine rear	67 in
Length w/o Bucket	115 in
Length - without Bucket	114 in
Wheel Base	48 in
Bucket Pin Height - Maximum Lift	127 in
Bucket Pin Height - Carry Position	8 in
Maximum Overall Height	160 in
Clearance at Maximum Lift and Dump	95 in
Reach - Maximum Lift/Dump	33 in
Turn Radius from Center - Coupler	52 in
Turn Radius from Center - Bucket	86 in
Maximum Reach - With Arms Parallel	52 in
Turn Radius from Center - Rear	67 in
Vehicle Width over Tires	72 in
Bumper Overhang - Rear Axle	41 in
Bucket Pin Reach - Maximum Lift	14 in

Cab & Operator specifications
ROPS	SAE J1040 MAY94 and ISO3471:1994
FOPS	SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional)
