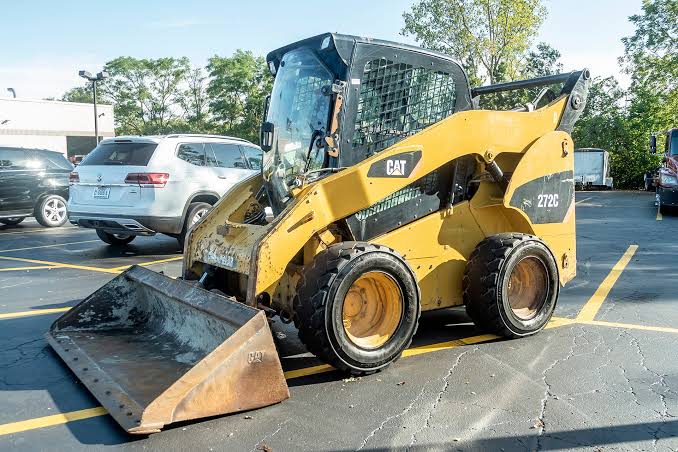

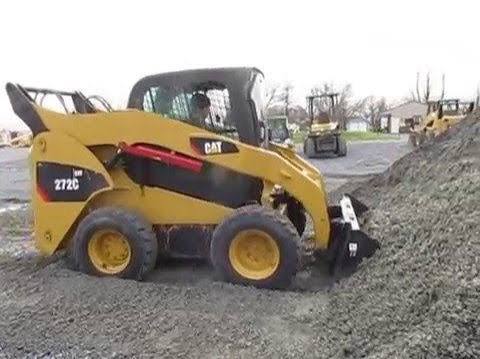

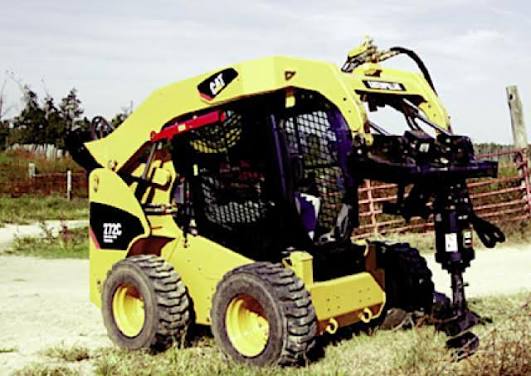

272C

Specifications

82 data points

Operating Specifications specifications
Operating Weight	8,292 lb
Max Speed	7.2 mph
Fuel Capacity	26.0 gal
Hydraulic System Fluid Capacity	15.0 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Fluid Capacity	2.6 gal
Cooling System Fluid Capacity	3.7 gal
Chain Box Fluid Capacity - each side	2.9 gal
Breakout Force - Tilt Cylinder	7,315 lb
Rated Operating Capacity	3,250 lb
Tipping Load	6,500 lb
Rated Operating Capacity with Optional Counterweight	3,480 lb

Weights specifications
Operating Weight	8,362 lb

Hydraulic System specifications
Pump Flow Capacity	22.0 gal/min
Relief Valve Pressure	3,335 psi
Loader Hydraulic Pressure	3,335 psi
Loader Hydraulic Flow	22.0 gal/min
Hydraulic Power	42.8 hp
Maximum Loader Hydraulic Flow	33.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	83 in
Wheelbase	54 in
Width Over Tires	66 in
Reach at Max Lift and Dump	30 in
Length with Bucket on Ground	151 in
Length with Bucket	150 in
Clearance at Max Lift and Dump	98 in
Turning Radius from Center - inc bucket	102 in
Turning Radius from Center - machine rear	58 in
Length w/o Bucket	130 in
Length - without Bucket	123 in
Wheel Base	55 in
Bucket Pin Height - Maximum Lift	130 in
Clearance at Maximum Lift and Dump	98 in
Maximum Overall Height	162 in
Bucket Pin Height - Carry Position	8 in
Reach - Maximum Lift/Dump	30 in
Turn Radius from Center - Bucket	89 in
Turn Radius from Center - Coupler	57 in
Turn Radius from Center - Rear	71 in
Maximum Reach - With Arms Parallel	50 in
Departure Angle	26 °
Maximum Dump Angle	51 °
Rack Back Angle - Maximum Height	83 °
Vehicle Width over Tires	66 in
Bumper Overhang - Rear Axle	43 in
Bucket Pin Reach - Maximum Lift	15 in
