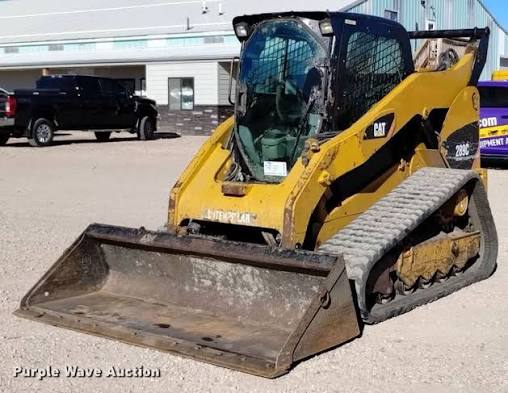

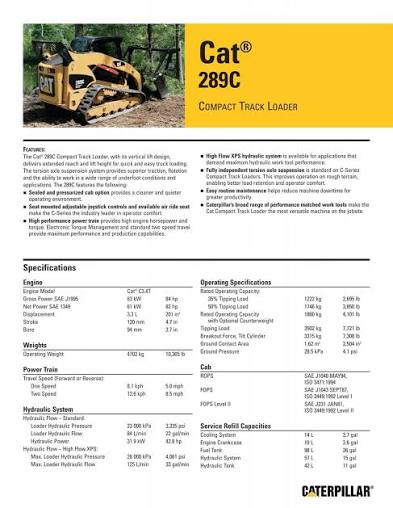

289C

Specifications

81 data points

Operating Specifications specifications
Operating Weight	10,365 lb
Max Speed - high range	8.5 mph
Max Speed - low range	5.1 mph
Fuel Capacity	25.9 gal
Hydraulic System Fluid Capacity	15.1 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Capacity	2.7 gal
Breakout Force - Tilt Cylinder	7,308 lb
Tipping Load	7,721 lb
Rated Operating Capacities - 35% Tipping Load	2,695 lb
Rated Operating Capacities - 50% Tipping Load	3,850 lb
Ground Contact Area	2,504 in³
Ground Pressure	4 psi
Rated Operating Capacity with Optional Counterweight	4,101 lb

Weights specifications
Operating Weight	10,365 lb

Hydraulic System specifications
Pump Flow	22.2 gal/min
Relief Valve Pressure	3,335 psi
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	42.8 hp
Loader Hydraulic Flow	22.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Flow	33.0 gal/min
Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	31 in
Length with Bucket on Ground	145 in
Width Over Tracks	78 in
Length with Bucket	145 in
Clearance at Max Lift and Dump	97 in
Turning Radius from Center - inc bucket	91 in
Turning Radius from Center - machine rear	65 in
Bucket Pin Height - Maximum Lift	128 in
Bucket Pin Height - Carry Position	8 in
Maximum Overall Height	161 in
Clearance at Maximum Lift and Dump	97 in
Turn Radius from Center - Bucket	91 in
Turn Radius from Center - Coupler	58 in
Maximum Reach - With Arms Parallel	51 in
Turn Radius from Center - Rear	65 in
Maximum Dump Angle	50 °
Departure Angle	44 °
Rack Back Angle - Maximum Height	85 °
Length - Track on Ground	70 in
Overall Length - Track	89 in
Bucket Pin Reach - Maximum Lift	15 in
Reach at Maximum Lift/Dump	31 in
Vehicle Width	78 in
