Terex

PT100G

Compact Track Loader

Operating Weight
11,462 lb
Max Speed - high range
10.0 mph
Displacement
268 in³
Gross Power
99.9 hp
All compact track loaders

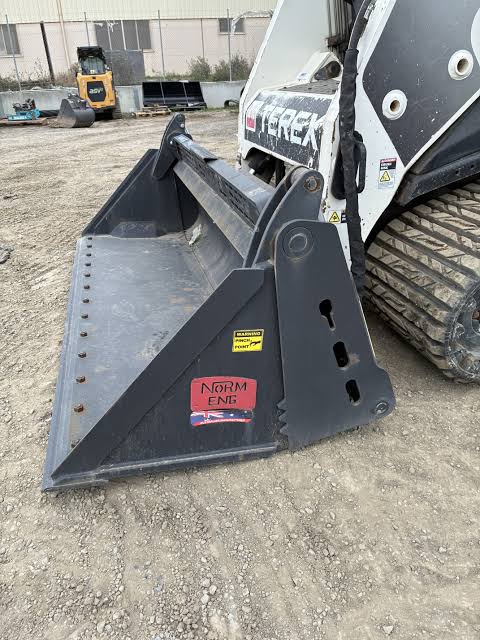

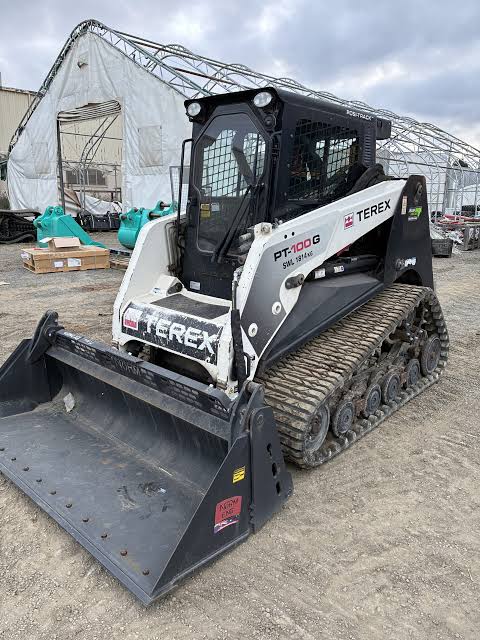

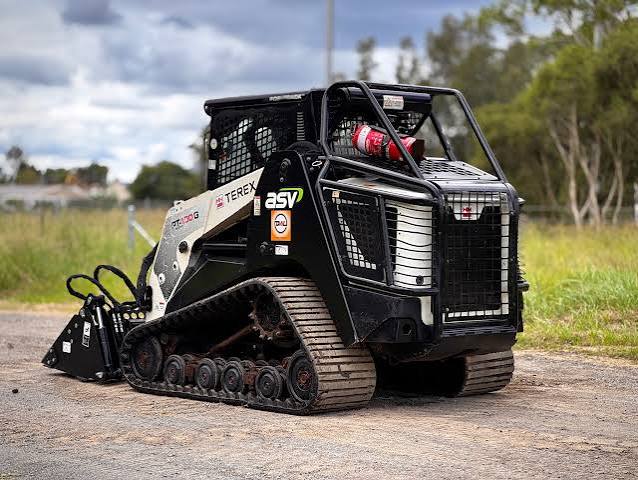

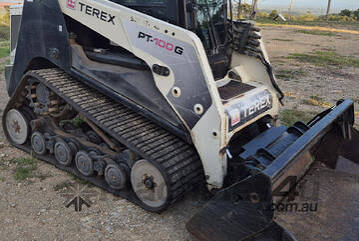

Terex PT100G Compact Track Loader
1 / 5
Image 1 of 5
Image: forestrytrader.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,462 lb
Max Speed - high range10.0 mph
Max Speed - low range6.0 mph
Fuel Capacity30.0 gal
Hydraulic System Fluid Capacity22.0 gal
Cooling System Fluid Capacity4.3 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A
Engine Oil Capacity2.3 gal

Engine

Engine specifications
Engine Model1104D-44T
Displacement268 in³
Power Measured @2,200 rpm
Gross Power99.9 hp
Number of Cylinders4
AspirationTurbocharged
Peak Torque310 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow20.0 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab86 in
Width Over Tracks71 in
Length with Bucket150 in
Clearance at Max Lift and Dump91 in
Length - without Bucket118 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground72 in
Width of Track18 in
Number of Track Rollers per Side24
Ground Contact Area2,556 in³

Loader

Loader specifications
Tipping Angle8,000 °
Operating Load4,000 lb
