Gehl

CTL85

Compact Track Loader

Operating Weight
11,222 lb
Max Speed - high range
7.5 mph
Displacement
230 in³
Gross Power
92.0 hp
All compact track loaders

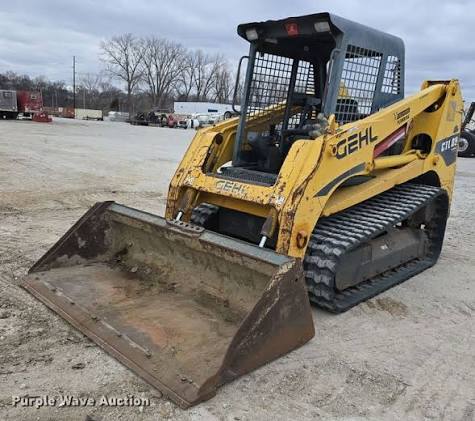

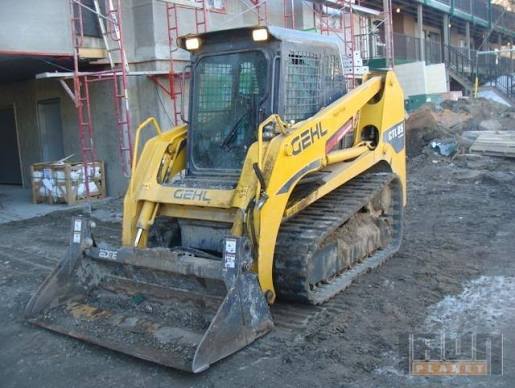

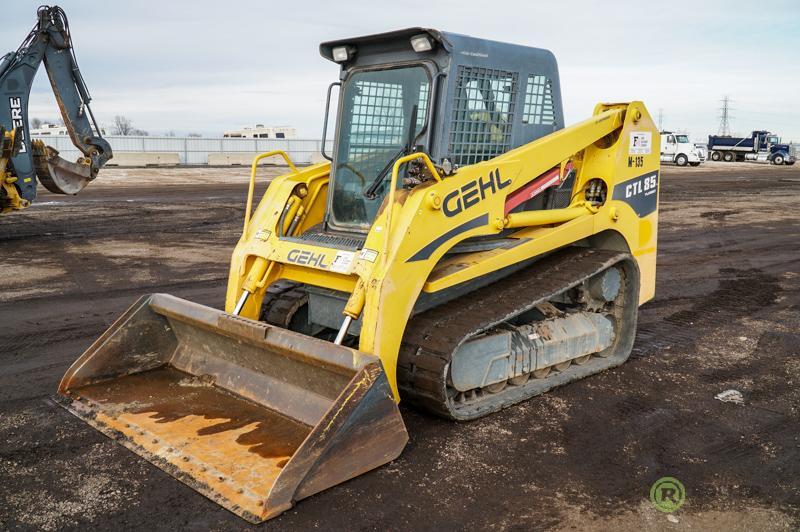

Gehl CTL85 Compact Track Loader
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,222 lb
Max Speed - high range7.5 mph
Max Speed - low range4.8 mph
Fuel Capacity28.6 gal
Hydraulic System Fluid Capacity15.9 gal
Cooling System Fluid Capacity4.4 gal
Operating Voltage12 V
Alternator Supplied Amperage80 A
Engine Oil Capacity3.5 gal

Engine

Engine specifications
Engine ModelV3800DI-T
Displacement230 in³
Power Measured @2,200 rpm
Gross Power92.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,600 rpm
Peak Torque240 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow23.5 gal/min
Relief Valve Pressure2,988 psi

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab88 in
Reach at Max Lift and Dump42 in
Width Over Tracks74 in
Length with Bucket157 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket106 in
Turning Radius from Center - machine rear72 in
Length - without Bucket124 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground64 in
Width of Track18 in
Number of Track Rollers per Side5

Loader

Loader specifications
Bucket Capacity0.80 yd³
Tipping Angle7,055 °
Operating Load3,527 lb
