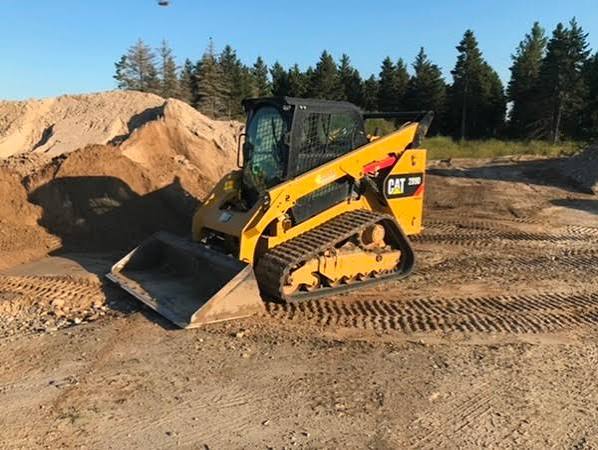

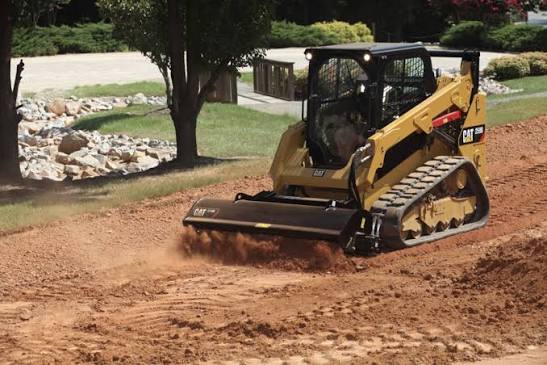

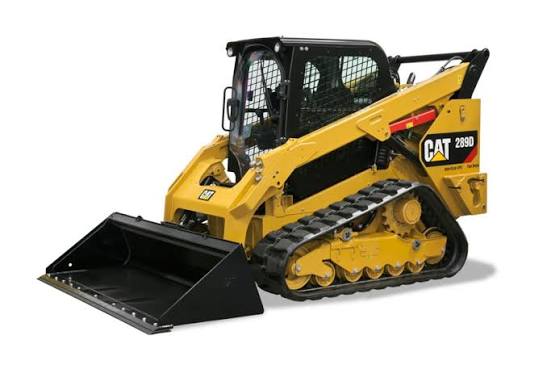

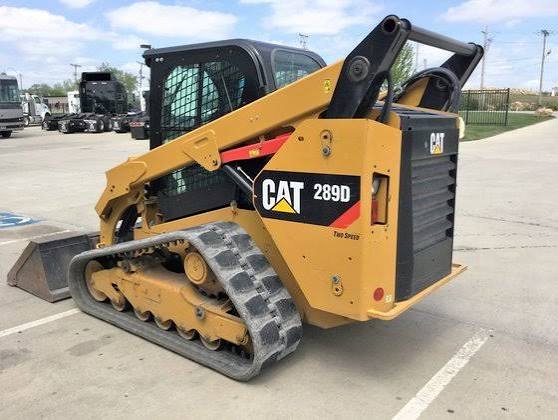

289D

Specifications

91 data points

Operating Specifications specifications
Operating Weight	10,534 lb
Max Speed - high range	7.1 mph
Max Speed - low range	4.5 mph
Fuel Capacity	24.9 gal
Hydraulic System Fluid Capacity	13.8 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	80 A
Breakout Force - Tilt Cylinder	7,291 lb
Tipping Load	7,600 lb
Rated Operating Capacities - 35% Tipping Load	2,660 lb
Rated Operating Capacities - 50% Tipping Load	3,800 lb
Rated Operating Capacity with Optional Counterweight	4,050 lb
Ground Contact Area - With 400 mm/15.7 in Track	2,015 in³
Ground Pressure - With 400 mm/15.7 in Track	5 psi
Ground Contact Area - With 450 mm/17.7 in Track	2,272 in³
Ground Pressure - With 450 mm/17.7 in Track	5 psi

Weights specifications
Operating Weight	10,533 lb

Hydraulic System specifications
Pump Flow	22.8 gal/min
Relief Valve Pressure	3,336 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	44.0 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3,335 psi
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	76.0 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	32.0 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	30 in
Length with Bucket on Ground	146 in
Width Over Tracks	77 in
Overall Height	158 in
Length with Bucket	146 in
Clearance at Max Lift and Dump	95 in
Dump angle	51 °
Bucket Pin Height - Maximum Lift	126 in
Maximum Overall Height	158 in
Clearance at Maximum Lift and Dump	94 in
Bucket Pin Height - Carry Position	8 in
Reach - Maximum Lift/Dump	30 in
Departure Angle	33 °
Maximum Dump Angle	51 °
Rack Back Angle - Maximum Height	84 °
Length - Track on Ground	64 in
Overall Length - Track	84 in
Bucket Pin Reach - Maximum Lift	15 in
Overall Track Length	84 in
Turning Radius from Center - Coupler	56 in
Maximum Reach - With Arms Parallel to Ground	50 in
Turning Radius from Center - Bucket	89 in
Vehicle Width (400 mm/15.7 in tracks)	76 in
Vehicle Width (450 mm/17.7 in tracks)	78 in

General Specifications specifications
Operating Width IN. (CM)	78 (198) Starting 2019 Model Year
Engine Power HP (KW)	73 (54) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)	3,800 (1,724) Starting 2016 Model Year
Rated Operating Capacity LBS (KG) 50%	2,660 (1,207) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 35%	2,660 (1,207) Starting 2020 Model Year

Power Train specifications
Travel Speed - Forward or Reverse - One Speed	4.5 mph
Travel Speed - Forward or Reverse - Two Speed	7.0 mph

Air Conditioning System specifications
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Noise Level specifications
Inside Cab*	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	103 dB(A)
