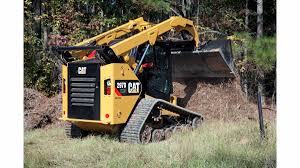

297D

Specifications

57 data points

Operating Specifications specifications
Breakout Force - Tilt Cylinder	7,491 lb
Tipping Load	9,100 lb
Rated Operating Capacities - 35% Tipping Load	3,185 lb
Rated Operating Capacities - 50% Tipping Load	4,550 lb
Ground Contact Area	2,233 in³
Ground Pressure	5 psi
Rated Operating Capacity with Optional Counterweight	4,800 lb

Hydraulic System specifications
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	44.0 hp
Loader Hydraulic Flow	23.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Flow	32.0 gal/min
Maximum Loader Hydraulic Pressure	4,061 psi
Hydraulic Power - Calculated	76.0 hp

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Length with Bucket on Ground	152 in
Length - without Bucket	124 in
Bucket Pin Height - Maximum Lift	126 in
Bucket Pin Height - Carry Position	8 in
Clearance at Maximum Lift and Dump	94 in
Maximum Overall Height	158 in
Turn Radius from Center - Bucket	92 in
Turn Radius from Center - Coupler	58 in
Turn Radius from Center - Rear	73 in
Maximum Reach - With Arms Parallel	50 in
Rack Back Angle - Maximum Height	83 °
Maximum Dump Angle	52 °
Departure Angle	31 °
Length - Track on Ground	71 in
Overall Length - Track	90 in
Bucket Pin Reach - Maximum Lift	16 in
Reach at Maximum Lift/Dump	31 in
Vehicle Width	76 in
