Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

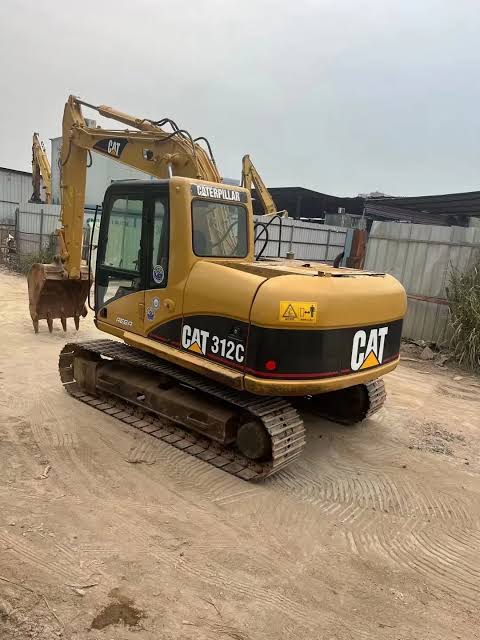

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Fuel Capacity | 66.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 33.5 gal/min |
| Hydraulic System Fluid Capacity | 42.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.7 gal |
| Cooling System Fluid Capacity | 4.7 gal |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | 3046 T |
|---|---|
| Displacement | 259 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 94.0 hp |
| Net Power | 90.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 102 in |
| Digging Depth | 228 in |
| Digging Reach | 228 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 24,729 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 220 in |
|---|---|
| Max Reach Along Ground | 323 in |
| Max Loading Height | 240 in |
| Max Vertical Wall Digging Depth | 197 in |
| Max Cutting Height | 335 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 109 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 343 in |
| Max Loading Height | 250 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 109 in |
