936E
Excavator
Specifications pending
1 / 5

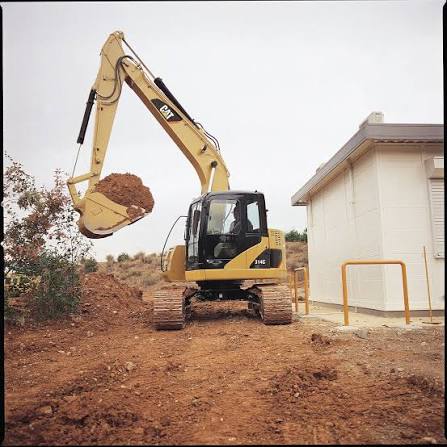

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Fuel Capacity | 52.8 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 33.5 gal/min |
| Hydraulic System Fluid Capacity | 39.6 gal |
| Hydraulic System Relief Valve Pressure | 4,340 psi |
| Engine Oil Capacity | 4.6 gal |
| Cooling System Fluid Capacity | 4.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 3064T |
|---|---|
| Displacement | 259 in³ |
| Gross Power | 94.0 hp |
| Net Power | 90.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 111 in |
| Length of Track on Ground | 138 in |
| Tail Swing Radius | 49 in |
| Width to Outside of Tracks | 102 in |
| Digging Depth | 228 in |
| Digging Reach | 228 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 20 in |
| Drawbar Pull | 24,730 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 206 in |
|---|---|
| Max Reach Along Ground | 313 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 193 in |
| Max Cutting Height | 367 in |
| Shipping Length of Unit | 293 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 235 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 260 in |
| Max Loading Height | 284 in |
| Max Reach Along Ground | 341 in |
| Shipping Length of Unit | 293 in |
