Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

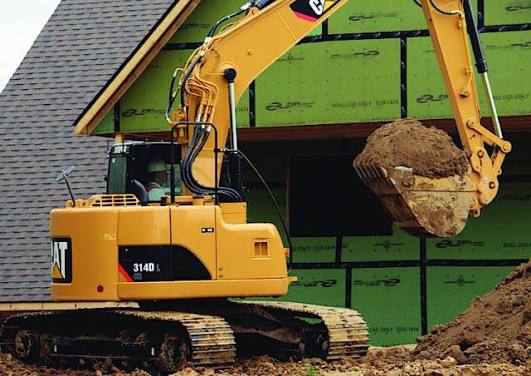

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Fuel Capacity | 49.2 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 5.6 gal/min |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Swing Drive Fluid Capacity | 0.8 gal |
Engine
| Engine Model | C4.2 ACERT |
|---|---|
| Displacement | 259 in³ |
| Gross Power | 97.0 hp |
| Net Power | 90.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 59 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Shoe Size | 20 in |
Boom/Stick Excavator Option 1
| Max Loading Height | 271 in |
|---|---|
| Max Vertical Wall Digging Depth | 194 in |
| Max Cutting Height | 367 in |
| Shipping Length of Unit | 287 in |
| Shipping Height of Unit | 115 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 227 in |
|---|---|
| Max Vertical Wall Digging Depth | 200 in |
| Max Cutting Height | 373 in |
| Max Loading Height | 277 in |
| Max Reach Along Ground | 332 in |
| Shipping Length of Unit | 292 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 234 in |
|---|---|
| Max Cutting Height | 379 in |
| Max Loading Height | 81 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Reach Along Ground | 341 in |
| Shipping Length of Unit | 293 in |
| Shipping Height of Unit | 115 in |
