936E
Excavator
Specifications pending
1 / 5

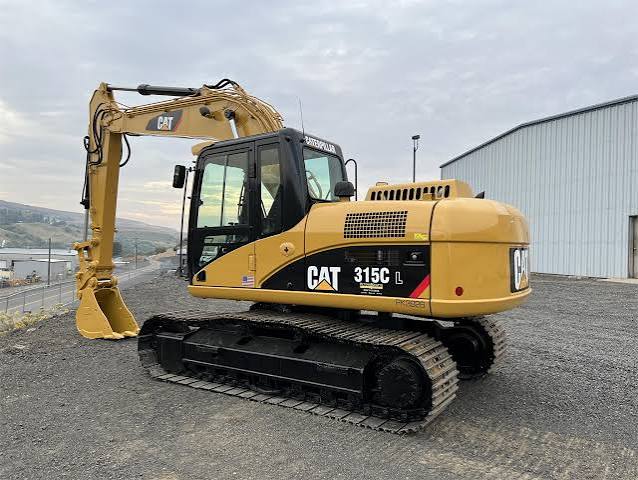

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Fuel Capacity | 75.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 39.6 gal/min |
| Hydraulic System Fluid Capacity | 50.2 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 5.0 gal |
| Cooling System Fluid Capacity | 5.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 3046T |
|---|---|
| Displacement | 305 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 115.0 hp |
| Net Power | 110.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 126 in |
| Tail Swing Radius | 96 in |
| Width to Outside of Tracks | 102 in |
| Digging Depth | 252 in |
| Digging Reach | 252 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 34,620 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 226 in |
|---|---|
| Max Reach Along Ground | 331 in |
| Max Loading Height | 243 in |
| Max Vertical Wall Digging Depth | 194 in |
| Max Cutting Height | 344 in |
| Shipping Length of Unit | 335 in |
| Shipping Height of Unit | 114 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 210 in |
| Max Cutting Height | 352 in |
| Max Loading Height | 250 in |
| Max Reach Along Ground | 344 in |
| Shipping Length of Unit | 336 in |
| Shipping Height of Unit | 114 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 258 in |
|---|---|
| Max Cutting Height | 354 in |
| Max Loading Height | 252 in |
| Max Vertical Wall Digging Depth | 220 in |
| Max Reach Along Ground | 360 in |
| Shipping Length of Unit | 336 in |
| Shipping Height of Unit | 119 in |
