Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

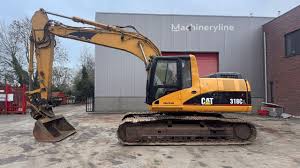

Image 1 of 5
Specifications
52 data points
Operating Specifications
| Fuel Capacity | 85.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 50.2 gal/min |
| Hydraulic System Fluid Capacity | 67.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 7.9 gal |
| Cooling System Fluid Capacity | 3.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.1 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 3066T |
|---|---|
| Displacement | 389 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 130.0 hp |
| Net Power | 125.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 137 in |
| Tail Swing Radius | 101 in |
| Width to Outside of Tracks | 110 in |
| Digging Depth | 252 in |
| Digging Reach | 252 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 95 in |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 45,500 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 234 in |
|---|---|
| Max Reach Along Ground | 342 in |
| Max Loading Height | 244 in |
| Max Vertical Wall Digging Depth | 191 in |
| Max Cutting Height | 352 in |
| Shipping Length of Unit | 349 in |
| Shipping Height of Unit | 121 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 251 in |
|---|---|
| Max Vertical Wall Digging Depth | 212 in |
| Max Cutting Height | 365 in |
| Max Loading Height | 256 in |
| Max Reach Along Ground | 360 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 124 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 270 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 238 in |
| Max Reach Along Ground | 379 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 138 in |
