Caterpillar

320 CS

Excavator

Operating Weight
50,795 lb
Max Digging Depth
162 in
Max Digging Depth
179 in
Net Power
138.0 hp
All excavators

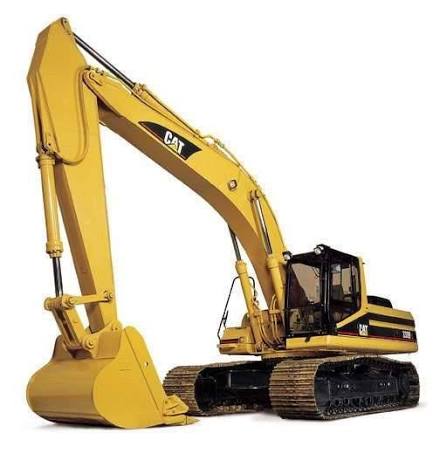

Caterpillar 320 CS Excavator
1 / 5
Image 1 of 5
Image: cat.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,795 lb

Engine

Engine specifications
Engine ModelATAAC engine 3066
Net Power138.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground138 in
Tail Swing Radius109 in
Width to Outside of Tracks100 in

Undercarriage

Undercarriage specifications
Track Gauge76 in
Shoe Size22 in
Drawbar Pull44,063 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth162 in
Max Reach Along Ground369 in
Max Loading Height306 in
Max Vertical Wall Digging Depth127 in
Max Cutting Height431 in
Shipping Length of Unit397 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.60 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth179 in
Max Vertical Wall Digging Depth146 in
Max Cutting Height446 in
Max Loading Height340 in
Max Reach Along Ground386 in
Shipping Length of Unit383 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth196 in
Max Cutting Height461 in
Max Loading Height353 in
Max Vertical Wall Digging Depth162 in
Max Reach Along Ground403 in
Shipping Length of Unit383 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth233 in
Max Cutting Height491 in
Max Reach Along Ground439 in
Max Loading Height381 in
Max Vertical Wall Dig Depth197 in
Shipping Length of Unit371 in
