Komatsu

PC138US-8

Excavator

Operating Weight
30,540 lb
Net Power
91.7 hp
All excavators

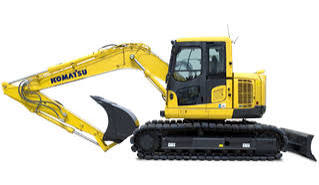

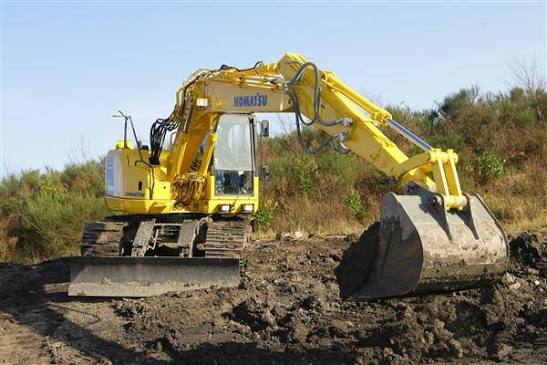

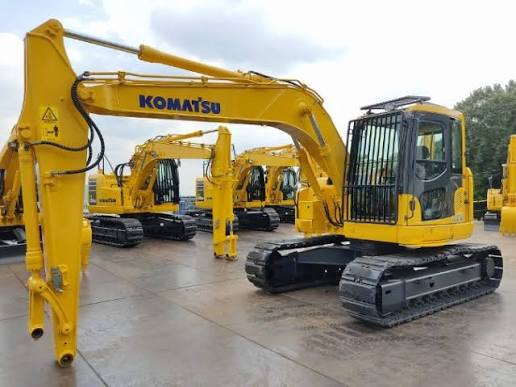

Komatsu PC138US-8 Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,540 lb
Fuel Capacity51.5 gal
Hydraulic System Fluid Capacity18.2 gal
Engine Oil Capacity2.9 gal
Cooling System Fluid Capacity3.3 gal
Swing Drive Fluid Capacity0.7 gal

Engine

Engine specifications
Engine ModelSAA4D95LE-5
Displacement199 in³
Power Measured @2,200 rpm
Gross Power96.6 hp
Net Power91.7 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab111 in
Length of Track on Ground143 in
Tail Swing Radius59 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Max Travel Speed3.2 mph
Number of Shoes per Side43
Number of Carrier Rollers per Side1
Drawbar Pull27,560 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
