Kobelco

SK80MSR-2

Excavator

Operating Weight
18,409 lb
Max Digging Depth
175 in
Net Power
55.0 hp
All excavators

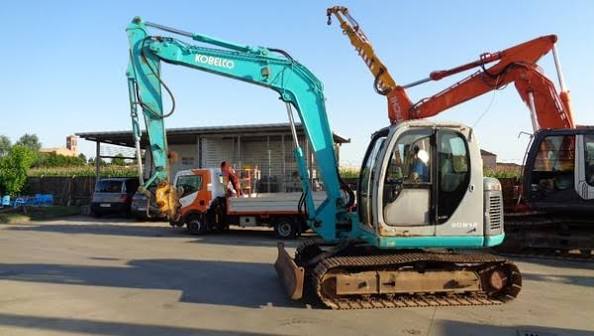

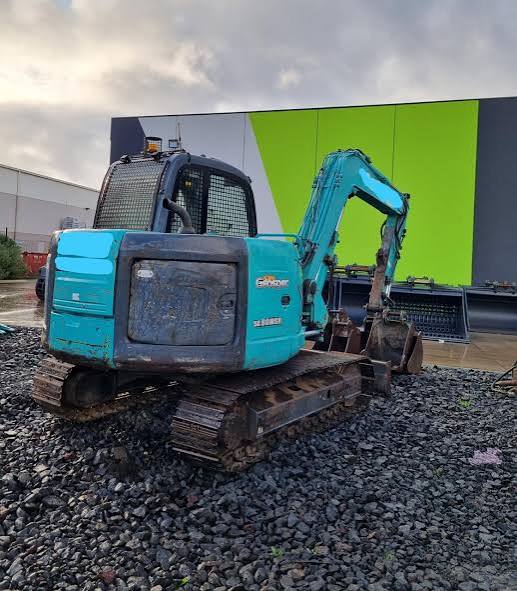

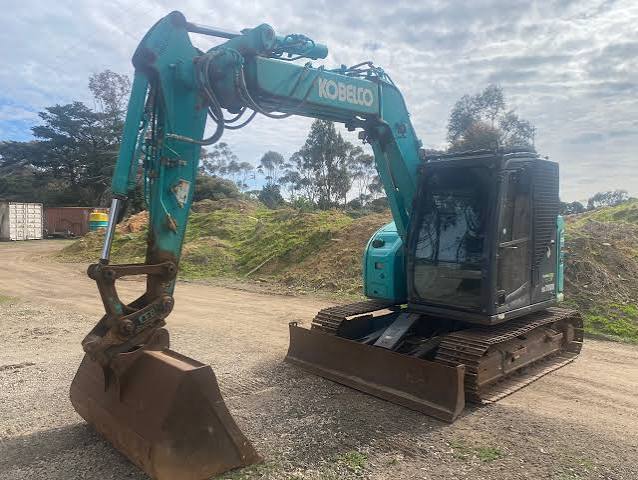

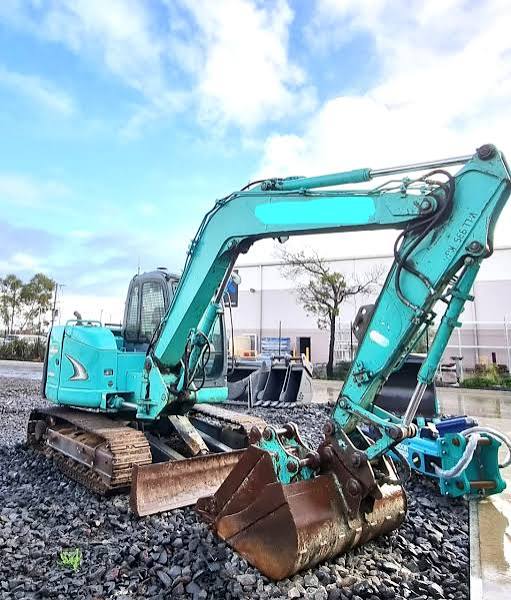

Kobelco SK80MSR-2 Excavator
1 / 5
Image 1 of 5
Image: ballarattractors.com.au

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,409 lb
Hydraulic Pump Flow Capacity34.9 gal/min
Hydraulic System Relief Valve Pressure4,264 psi

Engine

Engine specifications
Engine ModelAU-4LE2X
Displacement134 in³
Power Measured @2,200 rpm
Net Power55.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius71 in
Width to Outside of Tracks108 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth175 in
Max Reach Along Ground281 in
Max Loading Height189 in
Max Vertical Wall Digging Depth127 in
Shipping Length of Unit275 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
