Caterpillar

320C L

Excavator

Max Digging Depth
165 in
Max Digging Depth
181 in
Net Power
138.0 hp
All excavators

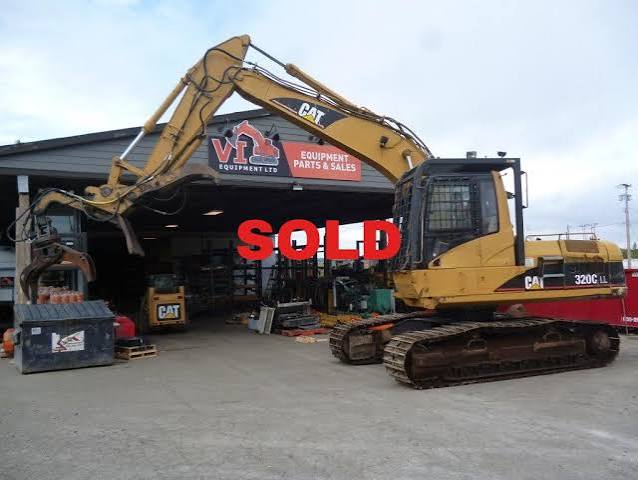

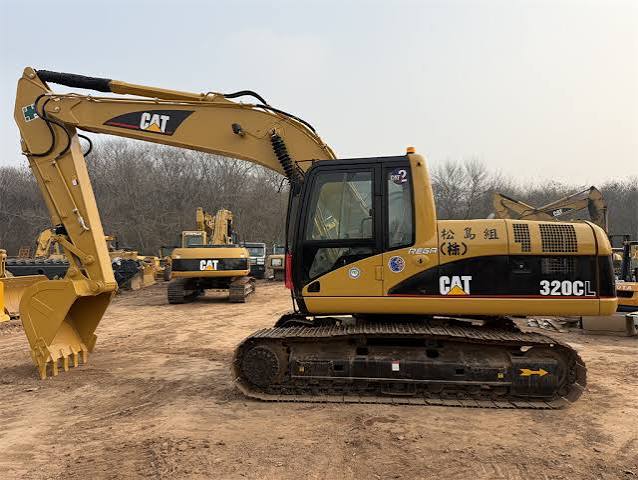

Caterpillar 320C L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Engine Oil Capacity7.0 gal

Engine

Engine specifications
Engine ModelATAAC engine 3066
Net Power138.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground144 in
Tail Swing Radius109 in
Width to Outside of Tracks118 in
Digging Depth300 in
Digging Reach300 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in
Drawbar Pull44,063 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth165 in
Max Reach Along Ground369 in
Max Loading Height304 in
Max Vertical Wall Digging Depth130 in
Max Cutting Height427 in
Shipping Length of Unit396 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.71 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth181 in
Max Vertical Wall Digging Depth149 in
Max Cutting Height444 in
Max Loading Height335 in
Max Reach Along Ground388 in
Shipping Length of Unit383 in
Shipping Height of Unit119 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth198 in
Max Cutting Height458 in
Max Loading Height350 in
Max Vertical Wall Digging Depth165 in
Max Reach Along Ground403 in
Shipping Length of Unit381 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth235 in
Max Cutting Height489 in
Max Reach Along Ground439 in
Max Loading Height380 in
Max Vertical Wall Dig Depth200 in
Shipping Length of Unit370 in
