Caterpillar

322B LN

Excavator

Operating Weight
52,492 lb
Max Digging Depth
264 in
Max Digging Depth
246 in
Net Power
153.0 hp
All excavators

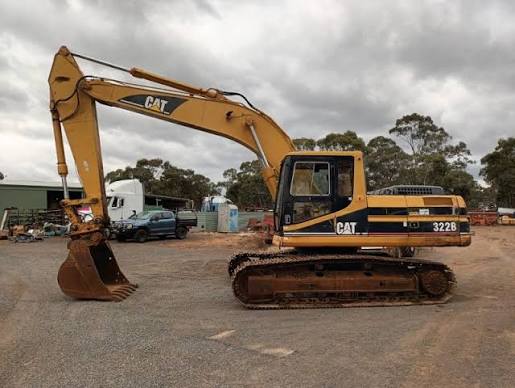

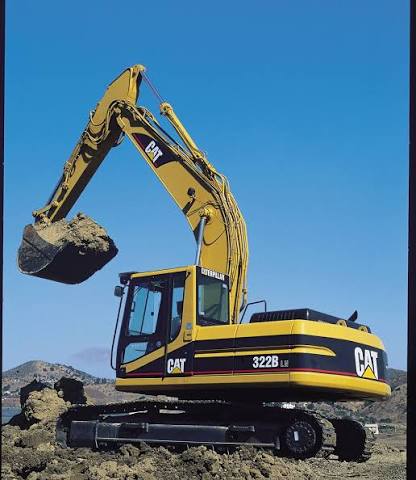

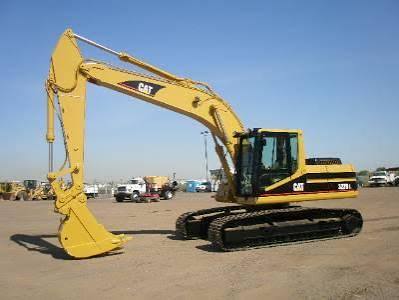

Caterpillar 322B LN Excavator
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,492 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity108.4 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3116TA
Displacement403 in³
Net Power153.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab125 in
Length of Track on Ground150 in
Tail Swing Radius121 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Max Travel Speed3.5 mph
Shoe Size24 in
Drawbar Pull43,650 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground395 in
Max Loading Height267 in
Max Vertical Wall Digging Depth175 in
Max Cutting Height379 in
Shipping Length of Unit408 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth158 in
Max Cutting Height372 in
Max Loading Height258 in
Max Reach Along Ground378 in
Shipping Length of Unit408 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth234 in
Max Cutting Height357 in
Max Loading Height235 in
Max Vertical Wall Digging Depth162 in
Max Reach Along Ground360 in
Shipping Length of Unit390 in
Shipping Height of Unit132 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth214 in
Max Cutting Height349 in
Max Reach Along Ground341 in
Max Loading Height227 in
Max Vertical Wall Dig Depth144 in
Shipping Length of Unit390 in
