Volvo

EC140DL

Excavator

Operating Weight
31,526 lb
Max Digging Depth
203 in
Max Digging Depth
219 in
Net Power
112.7 hp
All excavators

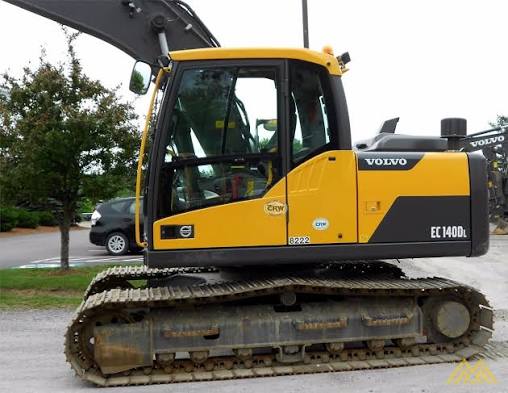

Volvo EC140DL Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,526 lb
Fuel Capacity68.2 gal
Hydraulic Pump Flow Capacity65.6 gal/min
Hydraulic System Fluid Capacity66.1 gal
Engine Oil Capacity4.3 gal
Cooling System Fluid Capacity7.4 gal
Operating Voltage28 V

Engine

Engine specifications
Engine ModelD4H
Displacement246,292 in³
Power Measured @2,000 rpm
Gross Power114.0 hp
Net Power112.7 hp
Torque Measured @1,500 rpm
Max Torque395 lb-ft
Engine MakeVolvo
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab110 in
Length of Track on Ground149 in
Tail Swing Radius88 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance37 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size30 in
Drawbar Pull26,528 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth203 in
Max Reach Along Ground308 in
Max Loading Height228 in
Max Vertical Wall Digging Depth181 in
Max Cutting Height323 in
Shipping Length of Unit304 in
Shipping Height of Unit107 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth219 in
Max Vertical Wall Digging Depth197 in
Max Cutting Height332 in
Max Loading Height238 in
Max Reach Along Ground323 in
Shipping Length of Unit304 in
Shipping Height of Unit111 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth238 in
Max Cutting Height346 in
Max Loading Height251 in
Max Vertical Wall Digging Depth217 in
Max Reach Along Ground343 in
Shipping Length of Unit299 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth200 in
Max Cutting Height365 in
Max Reach Along Ground312 in
Max Loading Height269 in
Max Vertical Wall Dig Depth169 in
Shipping Length of Unit304 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth215 in
Max Reach Along Ground328 in
Max Cutting Height379 in
Max Loading Height282 in
Max Vertical Wall Dig Depth185 in
Shipping Height of Unit111 in
Shipping Length of Unit304 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth235 in
Max Reach Along Ground347 in
Max Cutting Height398 in
Max Loading Height301 in
Max Vertical Wall Dig Depth204 in
Shipping Length of Unit299 in
Shipping Height of Unit127 in
