Caterpillar

322C LN

Excavator

Operating Weight
53,352 lb
Max Digging Depth
170 in
Max Digging Depth
183 in
Net Power
165.0 hp
All excavators

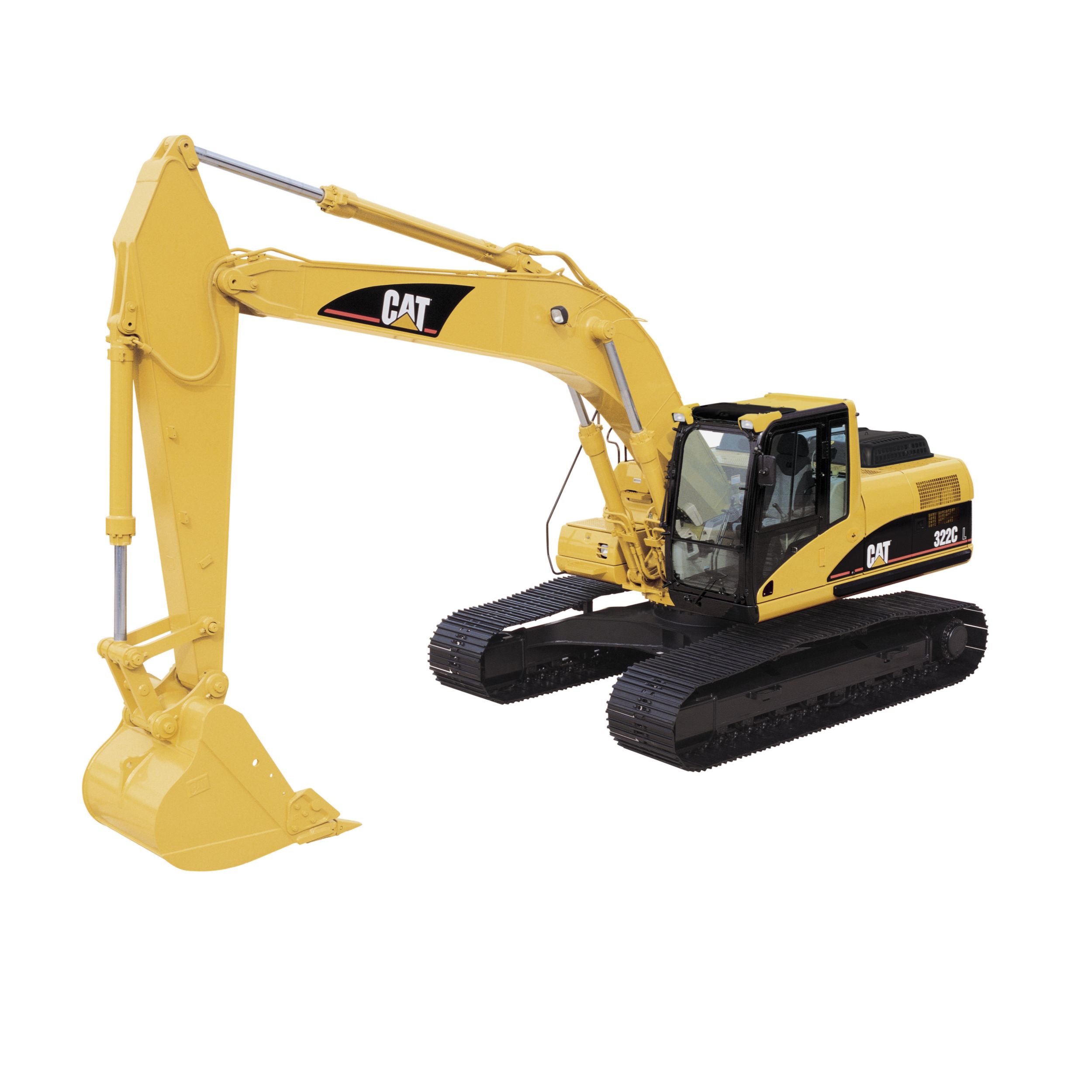

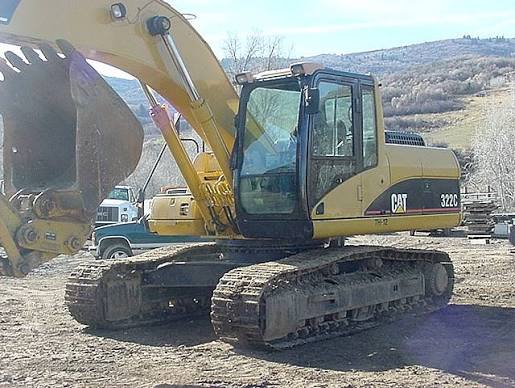

Caterpillar 322C LN Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight53,352 lb

Engine

Engine specifications
Engine ModelATAAC engine 3126B
Net Power165.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab119 in
Length of Track on Ground151 in
Tail Swing Radius115 in
Width to Outside of Tracks119 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in
Drawbar Pull50,132 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth170 in
Max Reach Along Ground384 in
Max Loading Height309 in
Max Vertical Wall Digging Depth134 in
Max Cutting Height445 in
Shipping Length of Unit409 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Reference Bucket Capacity1.60 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth183 in
Max Vertical Wall Digging Depth144 in
Max Cutting Height455 in
Max Loading Height332 in
Max Reach Along Ground396 in
Shipping Length of Unit401 in
Shipping Height of Unit121 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth200 in
Max Cutting Height470 in
Max Loading Height348 in
Max Vertical Wall Digging Depth159 in
Max Reach Along Ground414 in
Shipping Length of Unit400 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth233 in
Max Cutting Height496 in
Max Reach Along Ground445 in
Max Loading Height385 in
Max Vertical Wall Dig Depth198 in
Shipping Length of Unit391 in
