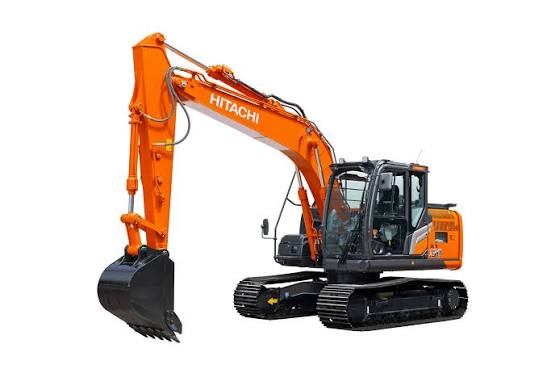

Hitachi
ZX180LC-5G
- Operating Weight
- 32,187 lb
- Max Digging Depth
- 241 in
- Max Digging Depth
- 259 in
- Net Power
- 121.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 32,187 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 101.0 gal/min |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Engine Oil Capacity | 4.2 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal |
Engine
| Engine Model | AA-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 338 lb-ft |
| Engine Make | Isuzu |
| Stroke | 5 in |
| Bore | 4 in |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 165 in |
| Tail Swing Radius | 101 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Track Gauge | 88 in |
|---|---|
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 352 in |
| Max Loading Height | 254 in |
| Max Vertical Wall Digging Depth | 200 in |
| Max Cutting Height | 366 in |
| Shipping Length of Unit | 357 in |
| Shipping Height of Unit | 124 in |
Bucket
| Maximum Bucket Capacity | 1.60 yd³ |
|---|
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 259 in |
|---|---|
| Max Vertical Wall Digging Depth | 215 in |
| Max Cutting Height | 371 in |
| Max Loading Height | 259 in |
| Max Reach Along Ground | 366 in |
| Shipping Length of Unit | 356 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 278 in |
|---|---|
| Max Cutting Height | 386 in |
| Max Loading Height | 274 in |
| Max Vertical Wall Digging Depth | 243 in |
| Max Reach Along Ground | 386 in |
| Shipping Length of Unit | 356 in |
| Shipping Height of Unit | 134 in |
