Caterpillar

324D L

Excavator

Max Digging Depth
270 in
All excavators

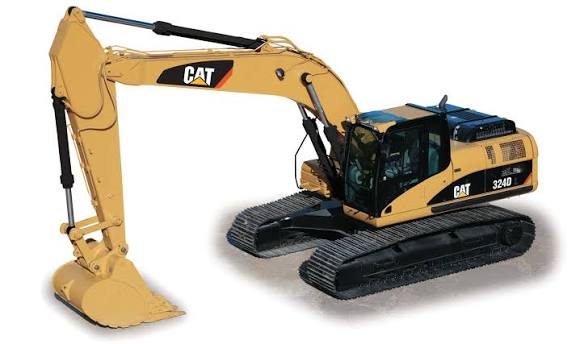

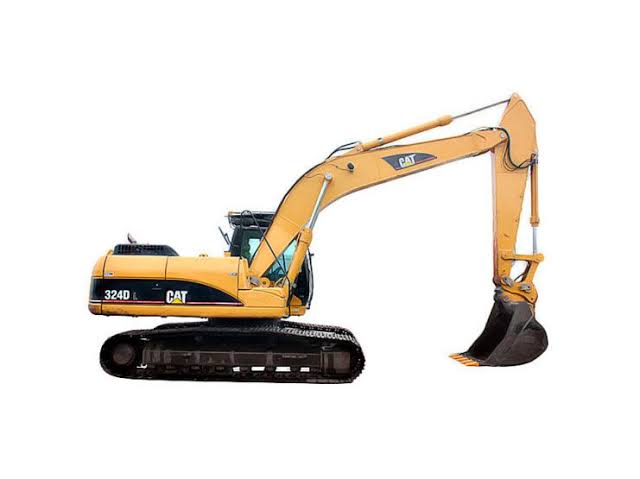

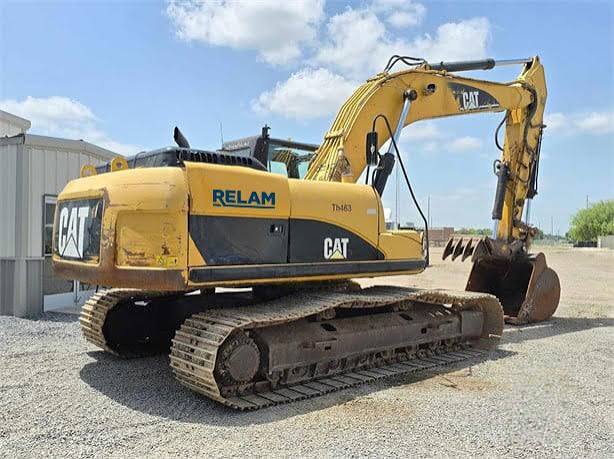

Caterpillar 324D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

60 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity137.0 gal
Hydraulic Pump Flow Capacity116.3 gal/min
Hydraulic System Fluid Capacity79.0 gal
Hydraulic System Relief Valve Pressure5,221 psi
Engine Oil Capacity8.0 gal
Cooling System Fluid Capacity8.0 gal
Swing Drive Fluid Capacity2.6 gal
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine ModelC7 ACERT
Displacement439 in³
Power Measured @1,800 rpm
Gross Power190.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab118 in
Length of Track on Ground151 in
Tail Swing Radius119 in
Width to Outside of Tracks133 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side8
Max Travel Speed3.4 mph
Shoe Size32 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull51,032 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Reach Along Ground415 in
Max Loading Height277 in
Max Vertical Wall Digging Depth259 in
Max Cutting Height390 in
Shipping Length of Unit396 in
Shipping Height of Unit135 in

Bucket

Bucket specifications
Reference Bucket Capacity1.80 yd³
Maximum Bucket Capacity2.69 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth270 in
Max Vertical Wall Digging Depth240 in
Max Cutting Height393 in
Max Loading Height259 in
Max Reach Along Ground388 in
Shipping Length of Unit396 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth252 in
Max Cutting Height384 in
Max Loading Height252 in
Max Vertical Wall Digging Depth222 in
Max Reach Along Ground371 in
Shipping Length of Unit398 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth256 in
Max Cutting Height389 in
Max Reach Along Ground372 in
Max Loading Height248 in
Max Vertical Wall Dig Depth224 in
Shipping Length of Unit373 in

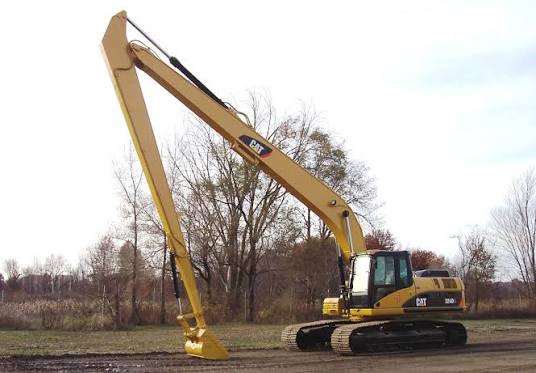

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth576 in
Max Reach Along Ground732 in
Max Cutting Height607 in
Max Loading Height523 in
Max Vertical Wall Dig Depth547 in
Shipping Height of Unit125 in
Shipping Length of Unit565 in
