Caterpillar

329D L

Excavator

Max Digging Depth
308 in
Max Digging Depth
287 in
All excavators

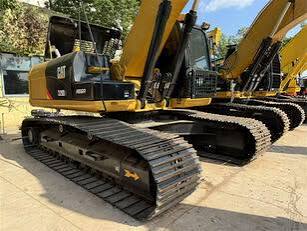

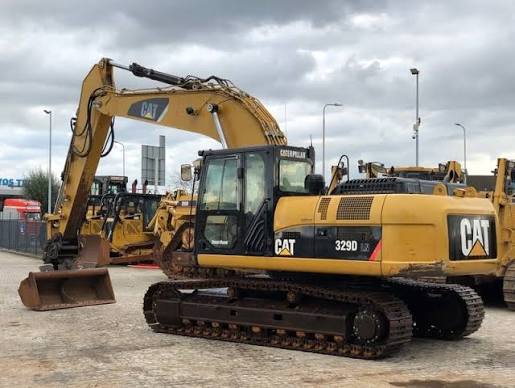

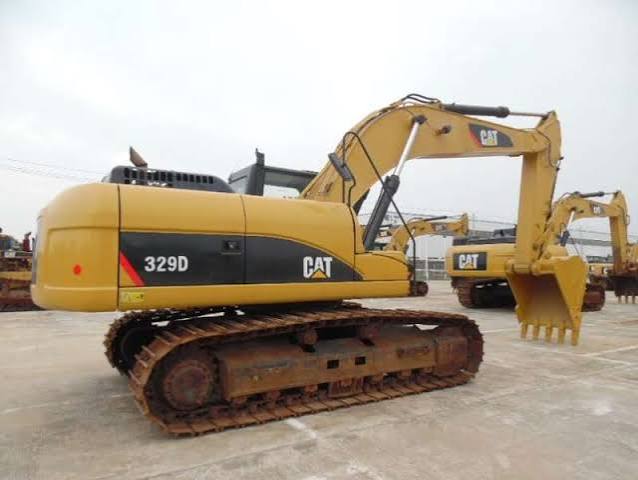

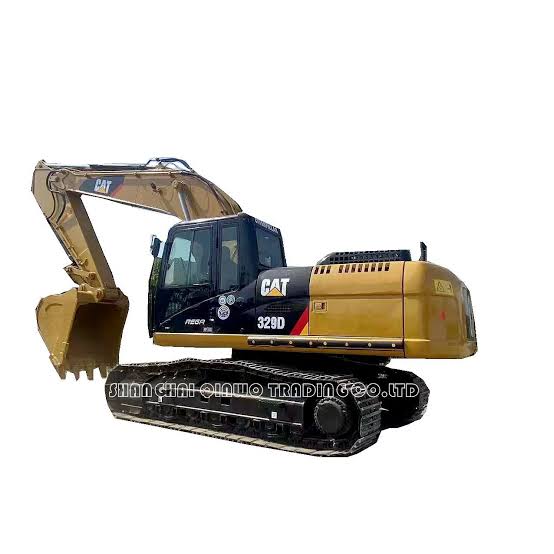

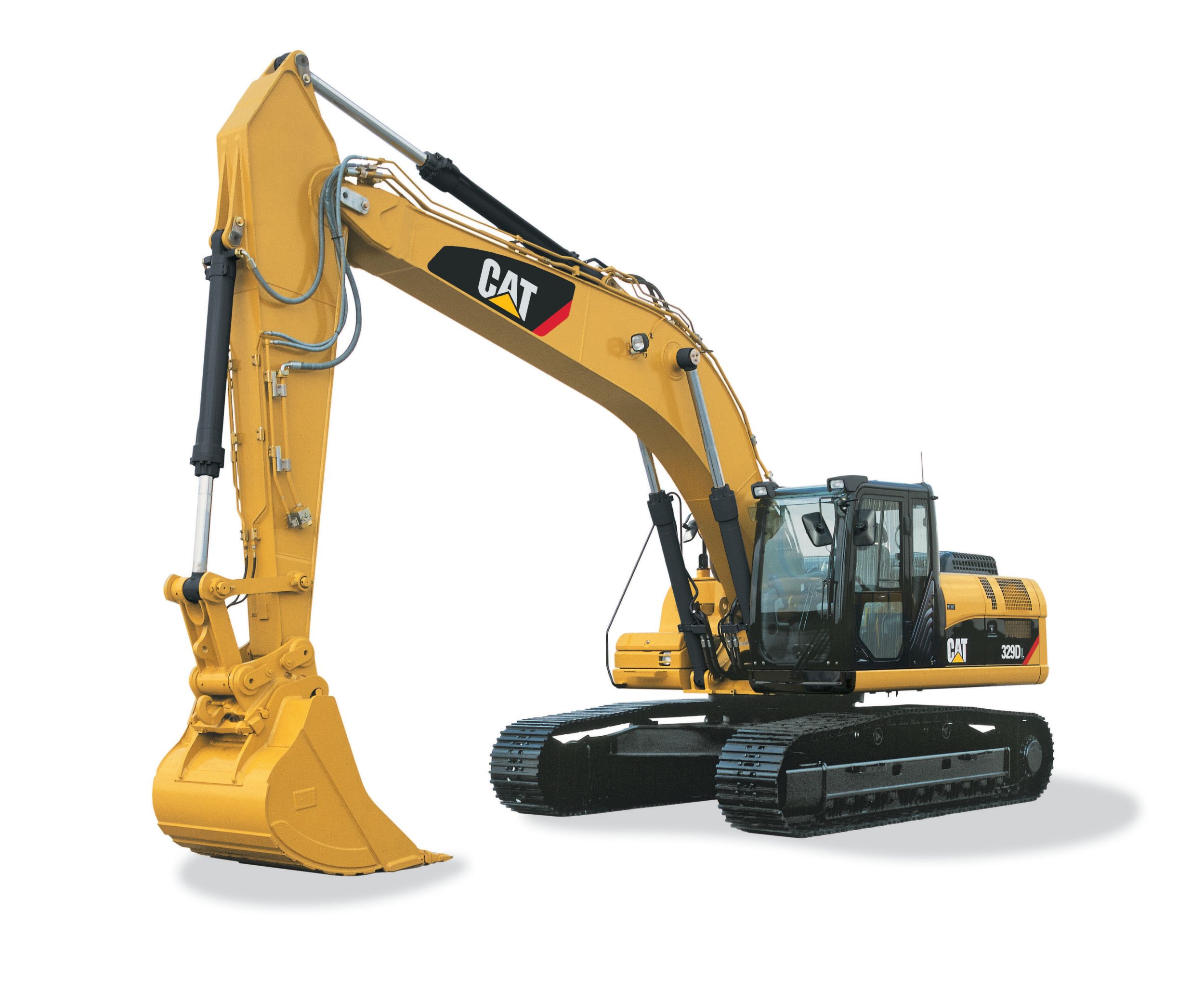

Caterpillar 329D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

66 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity137.4 gal
Hydraulic Pump Flow Capacity62.1 gal/min
Hydraulic System Fluid Capacity81.9 gal
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity8.0 gal
Cooling System Fluid Capacity8.0 gal
Swing Drive Fluid Capacity2.7 gal

Engine

Engine specifications
Engine ModelC7 ACERT
Displacement439 in³

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab120 in
Length of Track on Ground157 in
Tail Swing Radius122 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Track Gauge209 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size32 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2
Drawbar Pull55,978 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth308 in
Max Reach Along Ground439 in
Max Loading Height281 in
Max Vertical Wall Digging Depth260 in
Max Cutting Height406 in
Shipping Length of Unit410 in
Shipping Height of Unit144 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity3.40 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth287 in
Max Vertical Wall Digging Depth243 in
Max Cutting Height398 in
Max Loading Height272 in
Max Reach Along Ground420 in
Shipping Length of Unit410 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth265 in
Max Cutting Height395 in
Max Loading Height267 in
Max Vertical Wall Digging Depth229 in
Max Reach Along Ground401 in
Shipping Length of Unit410 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth267 in
Max Cutting Height381 in
Max Reach Along Ground395 in
Max Loading Height256 in
Max Vertical Wall Dig Depth222 in
Shipping Length of Unit386 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth243 in
Max Reach Along Ground373 in
Max Cutting Height364 in
Max Loading Height236 in
Max Vertical Wall Dig Depth199 in
Shipping Height of Unit128 in
Shipping Length of Unit389 in

Long Reach Excavator Option

Long Reach Excavator Option specifications
Max Digging Depth576 in
Max Cutting Height584 in
Max Loading Height584 in
Max Reach Along Ground733 in
Max Vertical Wall Digging Depth551 in
Shipping Height of Unit127 in
Shipping Length of Unit567 in
