Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

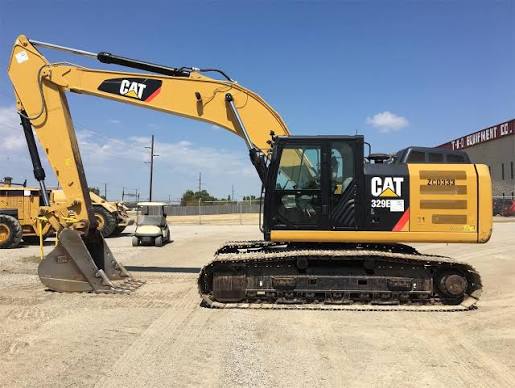

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Fuel Capacity | 137.4 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 74.0 gal/min |
| Hydraulic System Fluid Capacity | 81.9 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 6.0 gal |
| Cooling System Fluid Capacity | 11.7 gal |
| Swing Drive Fluid Capacity | 2.7 gal |
Engine
| Engine Model | C7.1 ACERT |
|---|---|
| Displacement | 428 in³ |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 120 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 46 in |
| Digging Depth | 724 – 578 in |
Undercarriage
| Track Gauge | 102 in |
|---|---|
| Max Travel Speed | 3.2 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 50 |
| Drawbar Pull | 55,528 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 285 in |
|---|---|
| Max Reach Along Ground | 421 in |
| Max Loading Height | 91 in |
| Max Vertical Wall Digging Depth | 236 in |
| Max Cutting Height | 395 in |
| Shipping Length of Unit | 409 in |
| Shipping Height of Unit | 133 in |
Bucket
| Reference Bucket Capacity | 1.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.60 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 224 in |
| Max Cutting Height | 390 in |
| Max Loading Height | 113 in |
| Max Reach Along Ground | 402 in |
| Shipping Length of Unit | 410 in |
| Shipping Height of Unit | 137 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 241 in |
|---|---|
| Max Cutting Height | 360 in |
| Max Loading Height | 98 in |
| Max Vertical Wall Digging Depth | 168 in |
| Max Reach Along Ground | 372 in |
| Shipping Length of Unit | 388 in |
| Shipping Height of Unit | 139 in |
