Caterpillar

330C L

Excavator

Operating Weight
77,400 lb
Max Digging Depth
320 in
Net Power
244.0 hp
All excavators

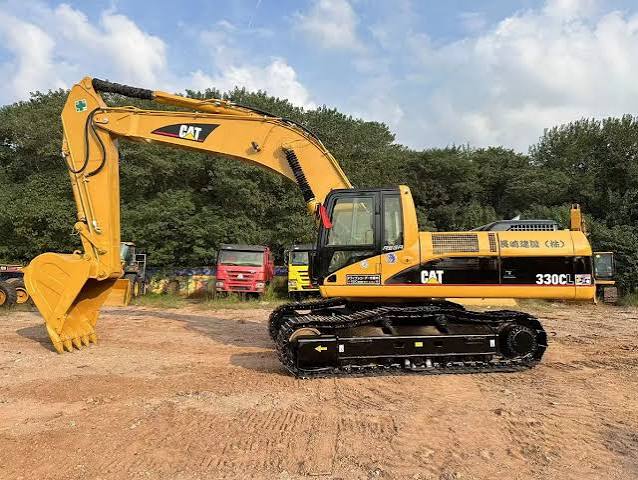

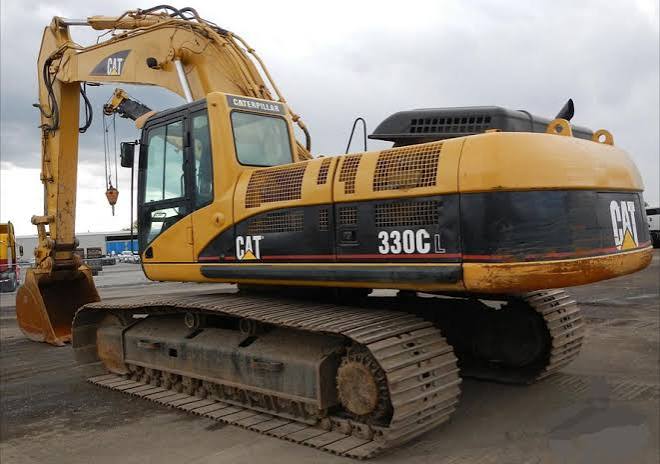

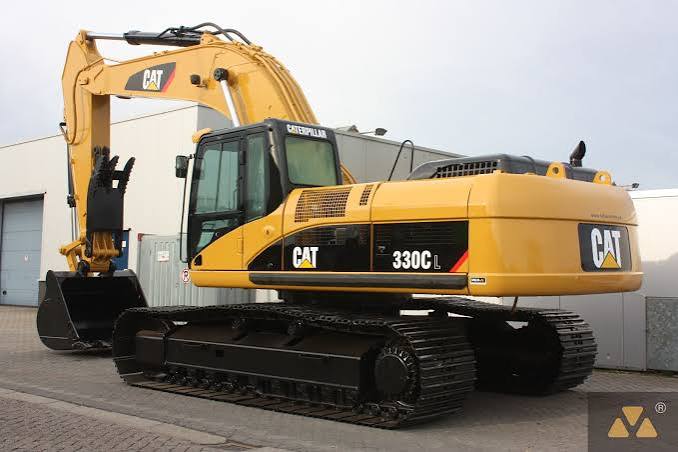

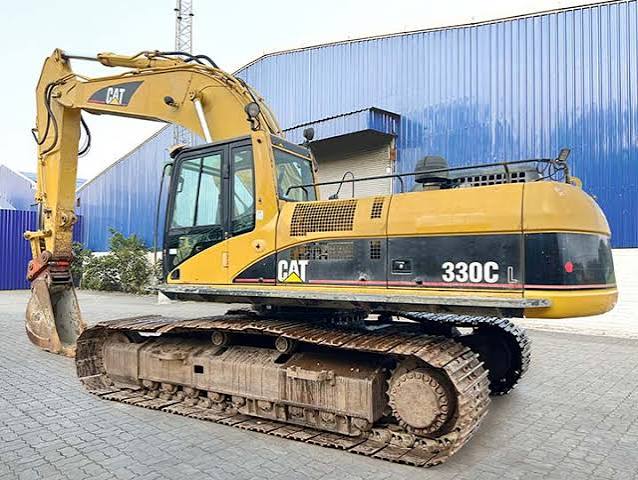

Caterpillar 330C L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

84 data points

Operating Specifications

Operating Specifications specifications
Operating Weight77,400 lb
Fuel Capacity163.0 gal
Hydraulic Pump Flow Capacity148.0 gal/min
Hydraulic System Fluid Capacity46.0 gal
Hydraulic System Relief Valve Pressure4,974 psi

Engine

Engine specifications
Engine ModelCAT C9
Displacement537 in³
Power Measured @1,800 rpm
Net Power244.0 hp
Stroke6 in
Bore5 in
Net Power - ISO 9249247.0 hp
Net Power - SAE J1349244.0 hp
Net Power - EEC 80/1269247.0 hp

Weights

Weights specifications
Operating Weight - Standard Undercarriage77,382 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing4,046 psi
Maximum Pressure - Travel4,974 psi
Boom Cylinder - Bore6 in
Boom Cylinder - Stroke57 in
Main Implement System - Maximum Flow (2x)74.0 gal/min
Maximum Pressure - Equipment4,974 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks135 in
Digging Depth312 in
Digging Reach312 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Max Travel Speed3.1 mph
Shoe Size34 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth320 in
Max Reach Along Ground458 in
Max Loading Height301 in
Max Vertical Wall Digging Depth289 in
Shipping Length of Unit442 in
Shipping Height of Unit148 in

Bucket

Bucket specifications
Reference Bucket Capacity2.30 yd³
Maximum Bucket Capacity3.81 yd³
Minimum Bucket Capacity0.99 yd³

Drive System

Drive System specifications
Maximum Drawbar Pull66,094 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System10.0 gal
Hydraulic System - Including Tank108.0 gal
Final Drive - Each4.0 gal
Engine Oil9.4 gal
Fuel Tank Capacity163.0 gal
Swing Drive5.0 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88 ISO 10262

Long Reach Option

Long Reach Option specifications
Net Power243.0 hp
Gross Power264.0 hp
Operating Weight87,193 lb
Max Digging Depth506 in
Displacement537 in³
Alternator Supplied Amperage65 A
AspirationTurbocharged
Cooling System Fluid Capacity9.3 gal
Drawbar Pull66,094 lb
Engine ModelC-9 ATAAC
Engine Oil Capacity9.4 gal
Fuel Capacity163.3 gal
Ground Clearance30 in
Ground Pressure9 psi
Height - Top of Cab141 in
Hydraulic Pump Flow Capacity148.0 gal/min
Hydraulic System Fluid Capacity108.4 gal
Hydraulic System Relief Valve Pressure4,975 psi
Length of Track on Ground159 in
Max Cutting Height617 in
Max Loading Height511 in
Max Reach Along Ground711 in
Max Travel Speed3.2 mph
Operating Voltage24 V
Power Measured @1,800 rpm
Reference Bucket Capacity1.40 yd³
Removal Counterweight Clearance57 in
Shipping Height of Unit143 in
Shipping Length of Unit605 in
Shoe Size30 in
Swing Drive Fluid Capacity5.1 gal
Swing Speed10 rpm
Tail Swing Radius138 in
Track Gauge115 in
Width to Outside of Tracks145 in
