Komatsu

PC210NLC-7

Excavator

Operating Weight
46,462 lb
Max Digging Depth
212 in
Max Digging Depth
240 in
Net Power
143.0 hp
All excavators

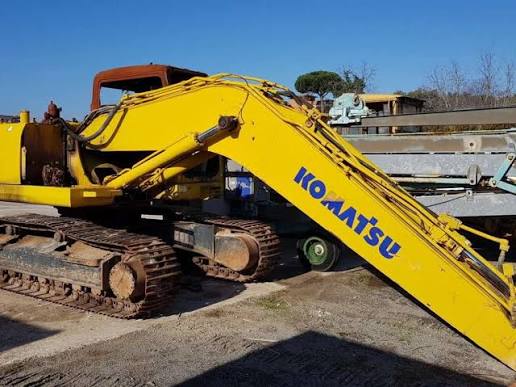

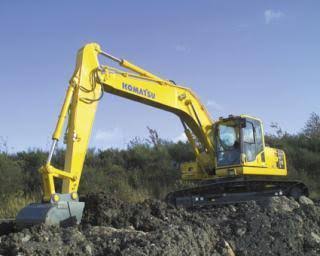

Komatsu PC210NLC-7 Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

71 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,462 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity113.1 gal/min
Hydraulic System Fluid Capacity37.8 gal
Hydraulic System Relief Valve Pressure5,405 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSAA6D102E-2
Displacement359 in³
Power Measured @1,950 rpm
Net Power143.0 hp
Aspirationturbocharged after-cooled

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground144 in
Tail Swing Radius110 in
Width to Outside of Tracks101 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge80 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size20 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull40,124 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth212 in
Max Reach Along Ground342 in
Max Loading Height261 in
Max Vertical Wall Digging Depth182 in
Max Cutting Height374 in
Shipping Length of Unit376 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth215 in
Max Cutting Height386 in
Max Loading Height272 in
Max Reach Along Ground362 in
Shipping Length of Unit377 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height395 in
Max Loading Height281 in
Max Vertical Wall Digging Depth236 in
Max Reach Along Ground383 in
Shipping Length of Unit374 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth200 in
Max Cutting Height398 in
Max Reach Along Ground356 in
Max Loading Height283 in
Max Vertical Wall Dig Depth163 in
Shipping Length of Unit391 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth224 in
Max Reach Along Ground378 in
Max Cutting Height413 in
Max Loading Height296 in
Max Vertical Wall Dig Depth197 in
Shipping Height of Unit139 in
Shipping Length of Unit386 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth245 in
Max Reach Along Ground398 in
Max Cutting Height426 in
Max Loading Height311 in
Max Vertical Wall Dig Depth210 in
Shipping Length of Unit385 in
Shipping Height of Unit138 in
