Komatsu

PC100L

Excavator

Operating Weight
27,999 lb
Max Digging Depth
174 in
Max Digging Depth
190 in
Net Power
81.0 hp
All excavators

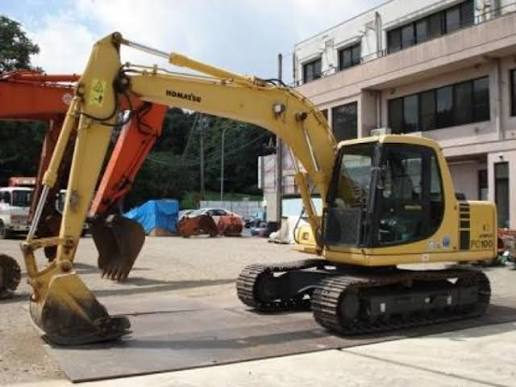

Komatsu PC100L Excavator
1 / 5
Image 1 of 5
Image: i-machine.net

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,999 lb
Fuel Capacity60.8 gal
Hydraulic Pump Flow Capacity65.6 gal/min
Hydraulic System Fluid Capacity38.4 gal
Hydraulic System Relief Valve Pressure2,500 psi

Engine

Engine specifications
Engine ModelS4D 105-5
Displacement264 in³
Net Power81.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab114 in
Length of Track on Ground106 in
Tail Swing Radius88 in
Width to Outside of Tracks108 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge78 in
Max Travel Speed1.5 mph
Shoe Size30 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth174 in
Max Reach Along Ground281 in
Max Loading Height205 in
Max Vertical Wall Digging Depth148 in
Max Cutting Height291 in
Shipping Length of Unit281 in
Shipping Height of Unit114 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth190 in
Max Vertical Wall Digging Depth158 in
Max Cutting Height295 in
Max Loading Height210 in
Max Reach Along Ground295 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth206 in
Max Cutting Height299 in
Max Loading Height214 in
Max Vertical Wall Digging Depth173 in
Max Reach Along Ground311 in
