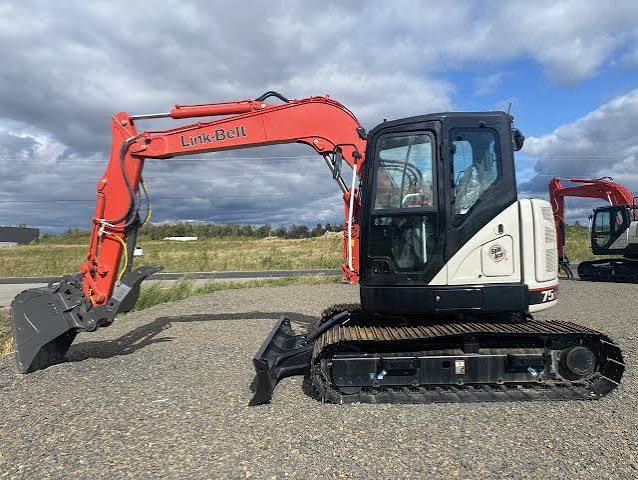

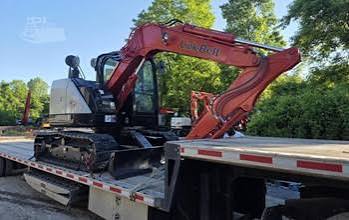

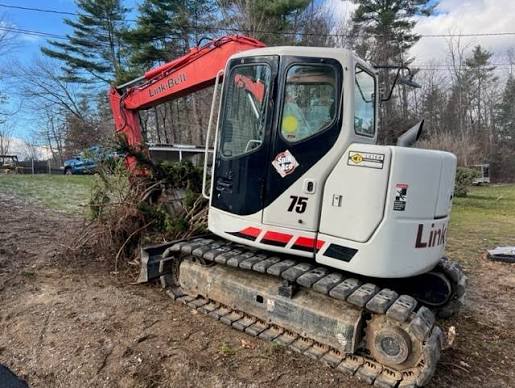

Link Belt
75 Spin Ace
- Operating Weight
- 16,900 lb
- Max Digging Depth
- 163 in
- Max Digging Depth
- 179 in
- Net Power
- 52.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 16,900 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Hydraulic Pump Flow Capacity | 37.8 gal/min |
| Hydraulic System Fluid Capacity | 25.1 gal |
| Hydraulic System Relief Valve Pressure | 4,260 psi |
| Engine Oil Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 2.6 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | CC-4JG1 |
|---|---|
| Displacement | 187 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 52.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 136 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 107 in |
| Tail Swing Radius | 48 in |
| Width to Outside of Tracks | 93 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 74 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 39 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 163 in |
|---|---|
| Max Reach Along Ground | 252 in |
| Max Loading Height | 207 in |
| Max Vertical Wall Digging Depth | 144 in |
| Max Cutting Height | 289 in |
| Shipping Length of Unit | 234 in |
| Shipping Height of Unit | 107 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.71 yd³ |
| Minimum Bucket Capacity | 0.30 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|---|
| Swing Torque | 12,520 lb-ft |
Boom/Stick Excavator Option 2
| Max Digging Depth | 179 in |
|---|---|
| Max Vertical Wall Digging Depth | 162 in |
| Max Cutting Height | 300 in |
| Max Loading Height | 219 in |
| Max Reach Along Ground | 268 in |
| Shipping Length of Unit | 233 in |
| Shipping Height of Unit | 117 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 166 in |
|---|---|
| Max Cutting Height | 284 in |
| Max Loading Height | 203 in |
| Max Vertical Wall Digging Depth | 128 in |
| Max Reach Along Ground | 251 in |
| Shipping Length of Unit | 235 in |
| Shipping Height of Unit | 118 in |
