Volvo

EC55

Excavator

Operating Weight
10,825 lb
Max Digging Depth
158 in
Net Power
51.0 hp
All excavators

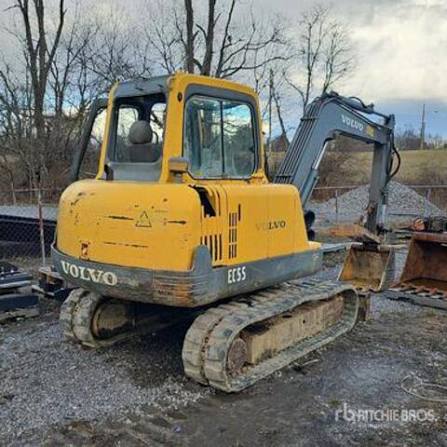

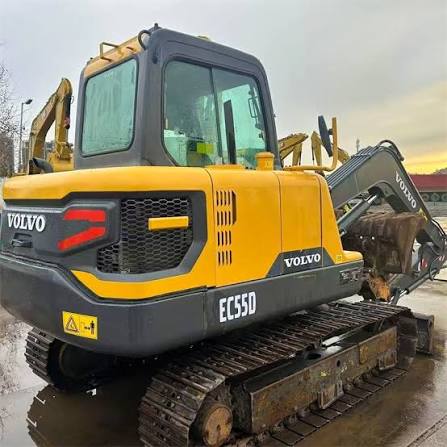

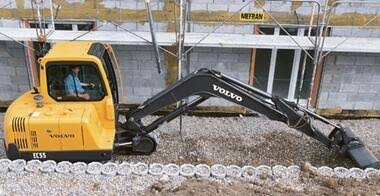

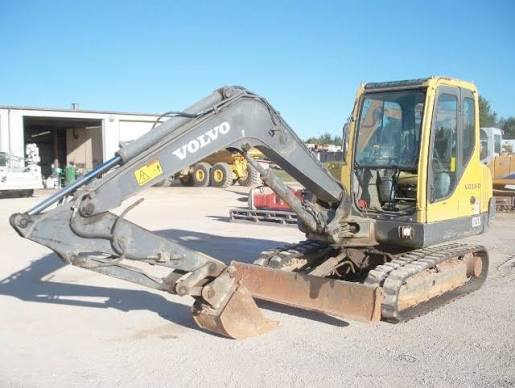

Volvo EC55 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,825 lb
Fuel Capacity23.8 gal
Hydraulic Pump Flow Capacity29.1 gal/min
Hydraulic System Fluid Capacity2.6 gal
Hydraulic System Relief Valve Pressure3,046 psi
Engine Oil Capacity23.8 gal
Cooling System Fluid Capacity3.2 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine Model4TNE94-SM
Displacement171 in³
Power Measured @2,200 rpm
Gross Power53.7 hp
Net Power51.0 hp
Number of Cylinders4
Aspirationnatural
Torque Measured @1,600 rpm
Max Torque133 lb-ft

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab101 in
Tail Swing Radius66 in
Width to Outside of Tracks76 in
Removal Counterweight Clearance28 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge60 in
Number of Track Rollers per Side5
Max Travel Speed2.7 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth158 in
Max Reach Along Ground236 in
Max Loading Height162 in
Max Vertical Wall Digging Depth103 in
Max Cutting Height228 in
Shipping Length of Unit233 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
