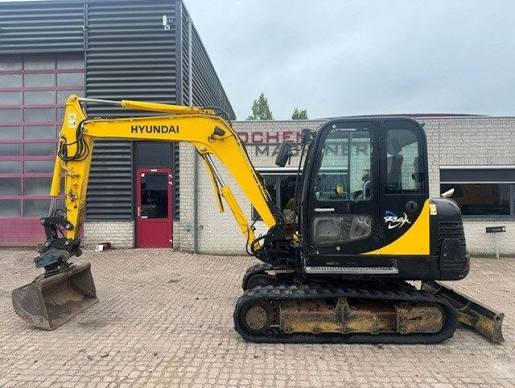

Hyundai
ROBEX 55-7
- Operating Weight
- 12,570 lb
- Max Digging Depth
- 151 in
- Max Digging Depth
- 161 in
- Net Power
- 52.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 12,570 lb |
|---|---|
| Fuel Capacity | 31.8 gal |
| Hydraulic Pump Flow Capacity | 29.1 gal/min |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Hydraulic System Relief Valve Pressure | 3,130 psi |
| Engine Oil Capacity | 2.5 gal |
| Cooling System Fluid Capacity | 2.7 gal |
| Operating Voltage | 12 V |
| Swing Drive Fluid Capacity | 0.4 gal |
| Alternator Supplied Amperage | 60 A |
Engine
| Engine Model | 4TNV94L |
|---|---|
| Displacement | 186 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 53.0 hp |
| Net Power | 52.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 149 lb-ft |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 101 in |
| Tail Swing Radius | 66 in |
| Width to Outside of Tracks | 76 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 60 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 16 in |
| Number of Shoes per Side | 40 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 11,700 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 151 in |
|---|---|
| Max Reach Along Ground | 238 in |
| Max Loading Height | 159 in |
| Max Vertical Wall Digging Depth | 126 in |
| Max Cutting Height | 228 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 161 in |
|---|---|
| Max Vertical Wall Digging Depth | 137 in |
| Max Cutting Height | 234 in |
| Max Loading Height | 166 in |
| Max Reach Along Ground | 247 in |
