Volvo

EW55B

Excavator

Operating Weight
11,552 lb
Net Power
51.0 hp
All excavators

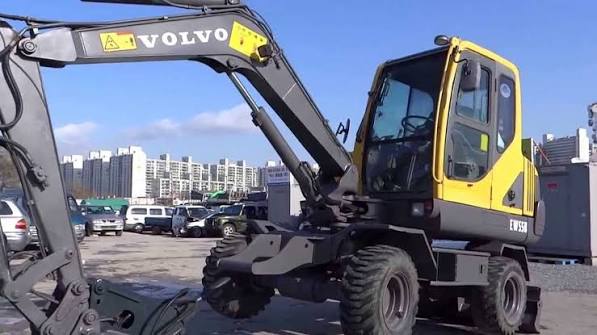

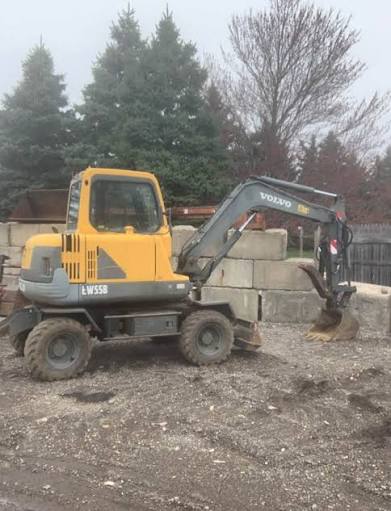

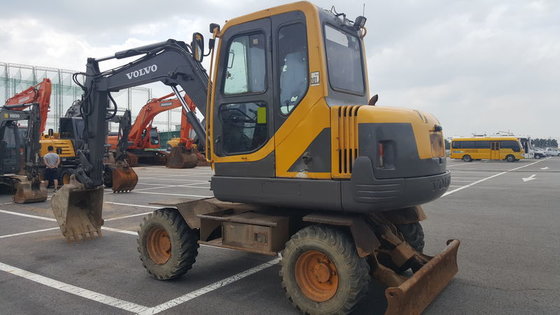

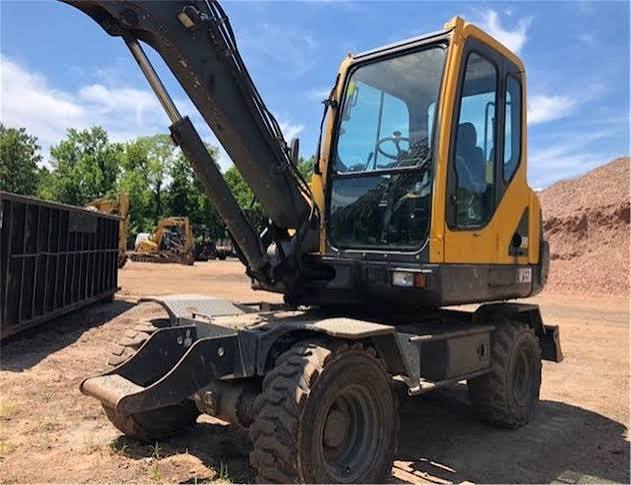

Volvo EW55B Excavator
1 / 5
Image 1 of 5
Image: machinio.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,552 lb
Fuel Capacity23.8 gal
Hydraulic Pump Flow Capacity29.0 gal/min
Hydraulic System Fluid Capacity34.4 gal
Hydraulic System Relief Valve Pressure3,045 psi
Engine Oil Capacity2.7 gal
Cooling System Fluid Capacity3.2 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Hydraulic Pump Typevariable displacement double pump
Tire Size12x16.5 12PR

Engine

Engine specifications
Engine ModelD3.1A
Displacement186 in³
Power Measured @2,200 rpm
Gross Power54.0 hp
Net Power51.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,400 rpm
Net Torque148 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Wheelbase77 in
Overall Width6 in
Tail Swing Radius66 in
Upper Structure Clearance28 in

Transmission

Transmission specifications
Max Travel Speed18.6 mph
Transmission Typehydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth151 in
Max Cutting Height228 in
Max Reach Along Ground236 in
Max Loading Height162 in
Shipping Length of Unit233 in
Shipping Height of Unit101 in
Max Vertical Wall Dig Depth103 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth166 in
Max Cutting Height238 in
Max Reach Along Ground250 in
Max Loading Height170 in
Shipping Height of Unit101 in
Shipping Length of Unit233 in
Max Vertical Wall Dig Depth119 in
