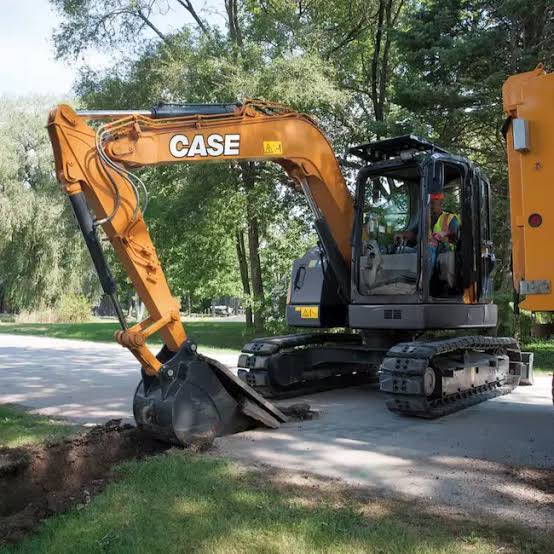

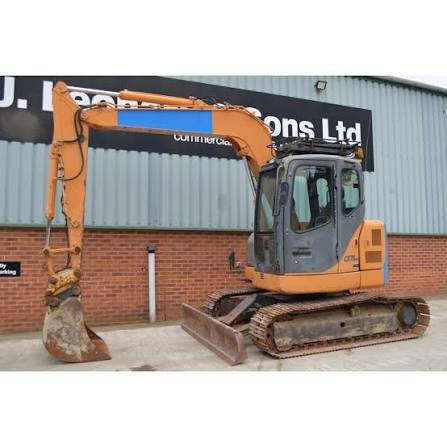

Case
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 16,896 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Hydraulic Pump Flow Capacity | 6.8 gal/min |
| Hydraulic System Fluid Capacity | 25.1 gal |
| Hydraulic System Relief Valve Pressure | 21 psi |
| Engine Oil Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 2.6 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | CC-4JG1 |
|---|---|
| Displacement | 187 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 52.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 107 in |
| Tail Swing Radius | 48 in |
| Width to Outside of Tracks | 93 in |
| Digging Depth | 168 in |
| Digging Reach | 168 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 74 in |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 18 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 166 in |
|---|---|
| Max Reach Along Ground | 251 in |
| Max Loading Height | 203 in |
| Max Vertical Wall Digging Depth | 128 in |
| Max Cutting Height | 284 in |
| Shipping Length of Unit | 235 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 165 in |
|---|---|
| Max Vertical Wall Digging Depth | 144 in |
| Max Cutting Height | 291 in |
| Max Loading Height | 207 in |
| Max Reach Along Ground | 252 in |
| Shipping Length of Unit | 234 in |
| Shipping Height of Unit | 107 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 180 in |
|---|---|
| Max Cutting Height | 300 in |
| Max Loading Height | 220 in |
| Max Vertical Wall Digging Depth | 162 in |
| Max Reach Along Ground | 267 in |
| Shipping Length of Unit | 233 in |
| Shipping Height of Unit | 117 in |
