Komatsu

PC128US-1

Excavator

Operating Weight
27,999 lb
Max Digging Depth
215 in
Net Power
85.9 hp
All excavators
Komatsu PC128US-1 Excavator

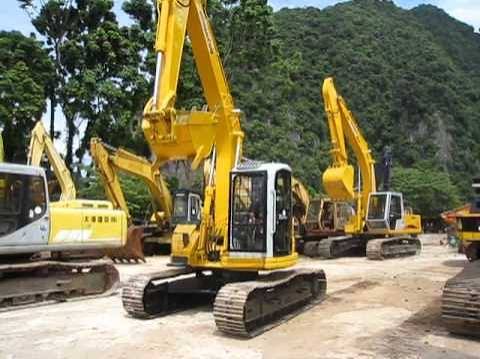

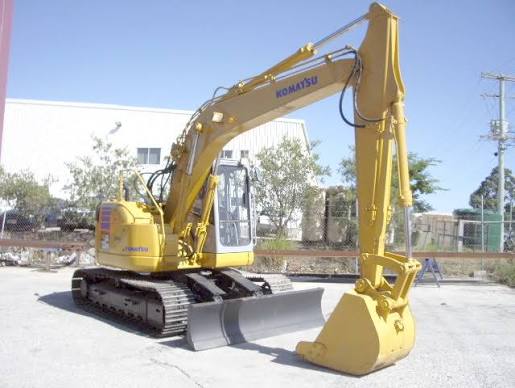

1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,999 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity59.8 gal/min
Hydraulic System Fluid Capacity32.3 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelS4D102E
Displacement239 in³
Power Measured @2,200 rpm
Net Power85.9 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab110 in
Length of Track on Ground109 in
Tail Swing Radius59 in
Width to Outside of Tracks97 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge78 in
Max Travel Speed31.7 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth215 in
Max Reach Along Ground319 in
Max Loading Height276 in
Max Vertical Wall Digging Depth192 in
Max Cutting Height367 in
Shipping Length of Unit309 in
Shipping Height of Unit110 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity0.90 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
