Caterpillar

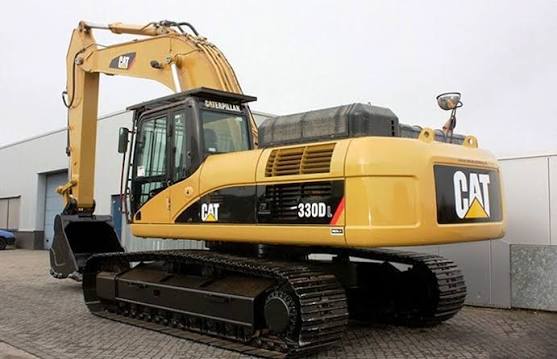

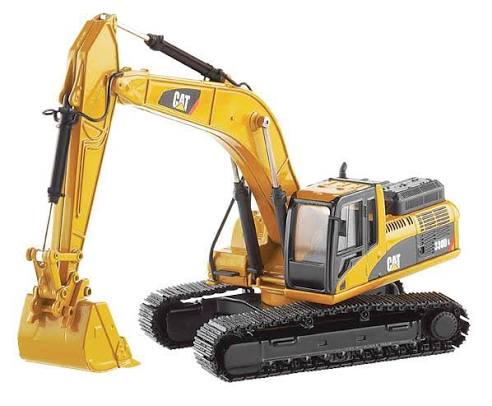

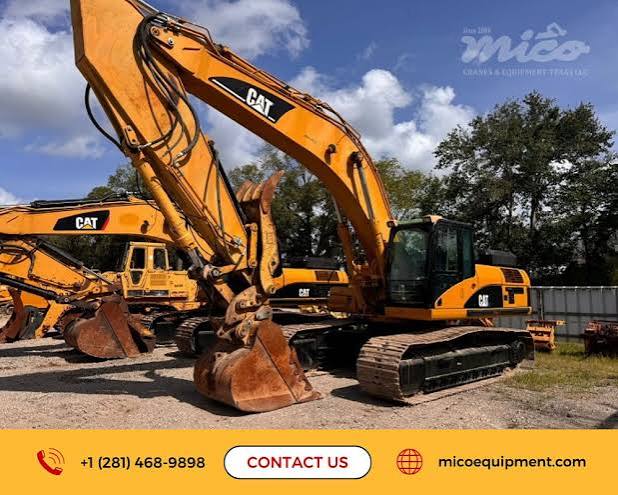

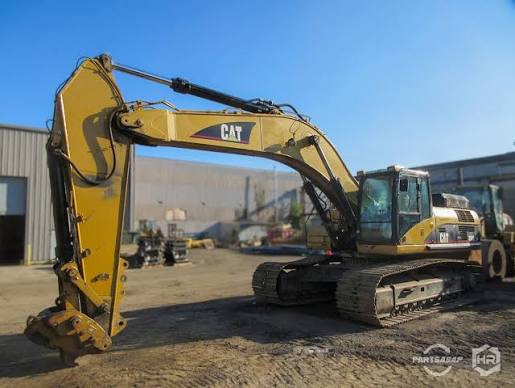

330D L
- Operating Weight
- 79,700 lb
- Max Digging Depth
- 323 in
- Max Digging Depth
- 295 in
- Net Power
- 270.0 hp
1 / 5
Image 1 of 5
Specifications
80 data points
Operating Specifications
| Operating Weight | 79,700 lb |
|---|---|
| Fuel Capacity | 163.8 gal |
| Hydraulic Pump Flow Capacity | 148.0 gal/min |
| Hydraulic System Fluid Capacity | 108.3 gal |
| Hydraulic System Relief Valve Pressure | 5,221 psi |
| Engine Oil Capacity | 10.6 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 65 A |
| Maximum Bucket Capacity | 3.40 yd³ |
Engine
| Engine Model | Cat C9 ACERT |
|---|---|
| Displacement | 537 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 270.0 hp |
| Stroke | 6 in |
| Bore | 4 in |
| Net Power - ISO 9249 | 268.0 hp |
| Net Power - SAE J1349 | 266.0 hp |
| Net Power - EEC 80/1269 | 268.0 hp |
Weights
| Operating Weight | 79,700 lb |
|---|---|
| Operating Weight - Standard Undercarriage | 79,700 lb |
Hydraulic System
| Maximum Pressure - Swing | 4,061 psi |
|---|---|
| Maximum Pressure - Travel | 5,076 psi |
| Boom Cylinder - Bore | 6 in |
| Boom Cylinder - Stroke | 57 in |
| Main Implement System - Maximum Flow (2x) | 74.0 gal/min |
| Maximum Pressure - Equipment | 5,076 psi |
| Pilot System - Maximum Flow | 11.4 gal/min |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 125 in |
| Tail Swing Radius | 138 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 48 in |
| Transport Width | 134 in |
Undercarriage
| Track Gauge | 102 in |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 67,443 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 323 in |
|---|---|
| Max Reach Along Ground | 462 in |
| Max Loading Height | 298 in |
| Max Vertical Wall Digging Depth | 282 in |
| Max Cutting Height | 424 in |
| Shipping Length of Unit | 442 in |
| Shipping Height of Unit | 144 in |
Bucket
| Reference Bucket Capacity | 1.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.40 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Drive System
| Maximum Drawbar Pull | 67,443 lb |
|---|
Service Refill Capacities
| Cooling System | 10.6 gal |
|---|---|
| Hydraulic System - Including Tank | 108.3 gal |
| Final Drive - Each | 2.1 gal |
| Engine Oil | 10.6 gal |
| Fuel Tank Capacity | 163.8 gal |
| Swing Drive | 5.0 gal |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 295 in |
|---|---|
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 404 in |
| Max Loading Height | 281 in |
| Max Reach Along Ground | 433 in |
| Shipping Length of Unit | 439 in |
| Shipping Height of Unit | 132 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 261 in |
|---|---|
| Max Cutting Height | 396 in |
| Max Loading Height | 261 in |
| Max Vertical Wall Digging Depth | 174 in |
| Max Reach Along Ground | 403 in |
| Shipping Length of Unit | 431 in |
| Shipping Height of Unit | 142 in |
Standards
| Brakes | SAE J1026 APR90 |
|---|---|
| Cab/FOGS | SAE J1356 FEB88 |
Track
| Number of Shoes - Each Side - Long Undercarriage | 49 |
|---|---|
| Number of Track Rollers - Each Side - Long Undercarriage | 9 |
| Number of Carrier Rollers - Each Side - Long Undercarriage | 2 |
| Standard with Long Undercarriage | 32 in |
