936E
Excavator
Specifications pending
1 / 5

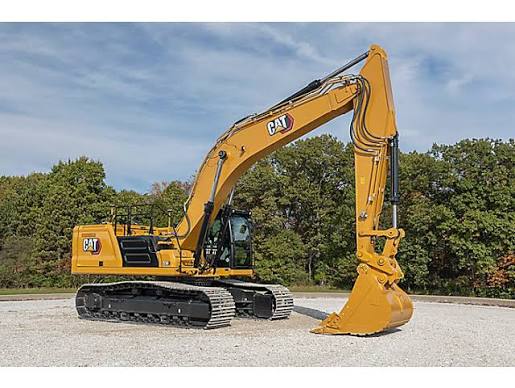

Image 1 of 5
Specifications
64 data points
Engine
| Engine Model | Cat C7.1 TTA Starting 2025 Model Year |
|---|---|
| Displacement | — |
| Stroke | — |
| Bore | — |
| Net Power - ISO 9249 | — |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. Starting 2025 Model Year |
| Engine Power - ISO 14396 | — |
| Note (2) | ¹Cat diesel engines are required to use ULSD or ULSD blended with lower-carbon intensity fuels. Starting 2025 Model Year |
| Net Power - ISO 9249 (DIN) | 304.00 hp (226.70 kw) Starting 2025 Model Year |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped... Starting 2025 Model Year |
| Engine Power - ISO 14396 (DIN) | 306.00 hp (228.19 kw) Starting 2025 Model Year |
| Biodiesel Capability | Up to B20¹ Starting 2025 Model Year |
Weights
| Operating Weight | — |
|---|
Hydraulic System
| Maximum Pressure - Swing | — |
|---|---|
| Maximum Pressure - Travel | — |
| Maximum Pressure - Equipment | — |
| Main System - Maximum Flow | 148 gal/min Starting 2025 Model Year |
| Maximum Pressure - Equipment - Lift Mode | 5511 psi Starting 2025 Model Year |
Dimensions
| Ground Clearance | — |
|---|---|
| Tail Swing Radius | — |
| Transport Width | — |
| Track Gauge | — |
| Shipping Length | — |
| Counterweight Clearance | — |
| Track length | — |
| Boom | Reach 6.5 m Starting 2025 Model Year |
| Handrail Height | 10.50 ft (3.20 m) Starting 2025 Model Year |
| Shipping Height - Top of Cab | 10.50 ft (3.20 m) Starting 2025 Model Year |
| Bucket | HD 2.00 m³ Starting 2025 Model Year |
| Stick | Reach 3.9 m Starting 2025 Model Year |
| Transport Width - 850 mm (33”) Shoes | 11.90 ft (3.63 m) Starting 2025 Model Year |
| Track Length to Center of Rollers | 13.30 ft (4.05 m) Starting 2025 Model Year |
General Specifications
| Net Power | 311.00 hp (231.92 kw) Starting 2021 Model Year |
|---|---|
| Operating Weight lbs (kg) | 81,9100 (36,800) Starting 2025 Model Year |
| Operating Weight | 81,900.00 lbs (37,149.26 kg) Starting 2021 Model Year |
| Max Digging Depth | 26.10 ft (7.96 m) Starting 2021 Model Year |
| Digging Depth ft (m) | 26.11 (8.21) Starting 2025 Model Year |
| Digging Reach ft. (m) | 38.7 (11.76) Starting 2025 Model Year |
| Engine hp (kW) | 300 (223.5) Starting 2025 Model Year |
| Engine | C9.3B Starting 2021 Model Year |
Service Refill Capacities
| Cooling System | — |
|---|---|
| Hydraulic System - Including Tank | — |
| Final Drive - Each | — |
| Engine Oil | — |
| Hydraulic Tank | — |
| Fuel Tank Capacity | — |
| Swing Drive - Each | — |
| DEF Tank | — |
Swing Mechanism
| Maximum Swing Torque | — |
|---|---|
| Note (1) | *For CE-marked machine default value may be set lower Starting 2025 Model Year |
Air Conditioning System
| Air Conditioning | Contains R134a refrigerant (1.00 kg, CO2 equivalent of 1.430 metric tonnes) Starting 2025 Model Year |
|---|
Sustainability
| Recyclability | 98 % Starting 2025 Model Year |
|---|
Working Ranges and Forces
| Boom | Reach 6.5 m Starting 2025 Model Year |
|---|---|
| Bucket | HD 2.00 m³ Starting 2025 Model Year |
| Bucket Digging Force - ISO | 47190 lbf·ft Starting 2025 Model Year |
| Maximum Cutting Height | 35.30 ft (10.76 m) Starting 2025 Model Year |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 26.60 ft (8.11 m) Starting 2025 Model Year |
| Maximum Digging Depth | 26.11 ft (7.96 m) Starting 2025 Model Year |
| Maximum Loading Height | 24.60 ft (7.50 m) Starting 2025 Model Year |
| Maximum Reach at Ground Level | 38.70 ft (11.80 m) Starting 2025 Model Year |
| Maximum Vertical Wall Digging Depth | 21.40 ft (6.52 m) Starting 2025 Model Year |
| Minimum Loading Height | 6.20 ft (1.89 m) Starting 2025 Model Year |
| Stick | Reach 3.9 m Starting 2025 Model Year |
| Stick Digging Force - ISO | 32480 lbf·ft Starting 2025 Model Year |
