Caterpillar

336D L

Excavator

Max Digging Depth
295 in
All excavators

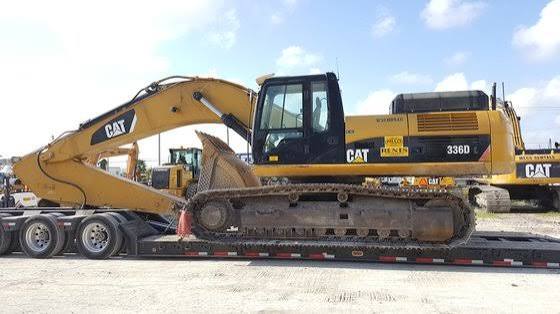

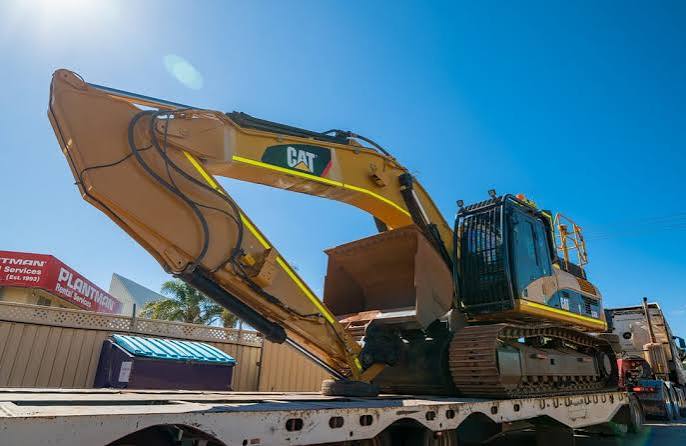

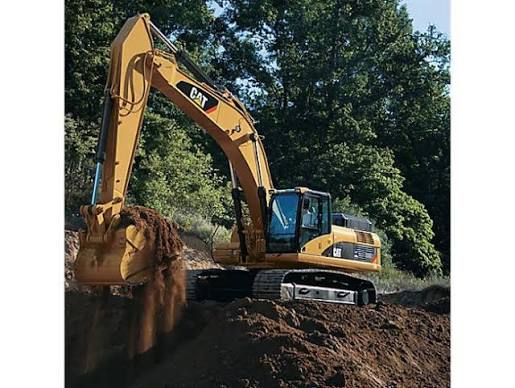

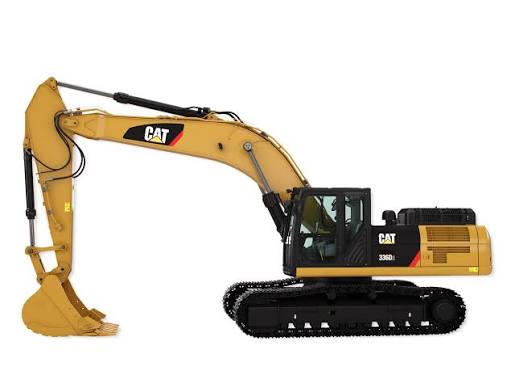

Caterpillar 336D L Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity163.8 gal
Hydraulic Pump Flow Capacity74.0 gal/min
Hydraulic System Fluid Capacity108.4 gal
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity10.6 gal
Cooling System Fluid Capacity10.6 gal
Swing Drive Fluid Capacity5.1 gal
Maximum Bucket Capacity3.40 yd³

Engine

Engine specifications
Engine ModelCat C9 ACERT
Displacement537 in³
Net Power - ISO 9249268.0 hp
Net Power - SAE J1349266.0 hp
Net Power - EEC 80/1269268.0 hp

Weights

Weights specifications
Operating Weight80,464 lb
Maximum Operating Weight82,962 lb
Minimum Operating Weight78,634 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing4,061 psi
Maximum Pressure - Travel5,076 psi
Main Implement System - Maximum Flow (2x)74.0 gal/min
Pilot System - Maximum Flow11.0 gal/min
Maximum Pressure - Equipment - Normal5,076 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab125 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance49 in
Transport Width1,602 in
Shipping Height12 in
Counterweight Clearance577 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Max Travel Speed3.2 mph
Shoe Size32 in
Drawbar Pull67,443 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height298 in
Max Vertical Wall Digging Depth282 in
Max Cutting Height424 in
Shipping Length of Unit442 in
Shipping Height of Unit144 in

Bucket

Bucket specifications
Reference Bucket Capacity1.60 yd³
Maximum Bucket Capacity3.40 yd³
Minimum Bucket Capacity1.29 yd³

Drive System

Drive System specifications
Maximum Drawbar Pull67,443 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System10.6 gal
Hydraulic System - Including Tank108.3 gal
Final Drive - Each2.1 gal
Engine Oil10.6 gal
Hydraulic Tank46.2 gal
Fuel Tank Capacity163.8 gal
Swing Drive5.0 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth295 in
Max Vertical Wall Digging Depth243 in
Max Cutting Height406 in
Max Loading Height281 in
Max Reach Along Ground434 in
Shipping Length of Unit439 in
Shipping Height of Unit132 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height395 in
Max Loading Height261 in
Max Vertical Wall Digging Depth175 in
Max Reach Along Ground404 in
Shipping Length of Unit430 in
Shipping Height of Unit142 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage49
Number of Track Rollers - Each Side - Long Undercarriage9
Number of Carrier Rollers - Each Side - Long Undercarriage2
