Caterpillar

345C L

Excavator

Operating Weight
99,150 lb
Max Digging Depth
340 in
Max Digging Depth
324 in
All excavators

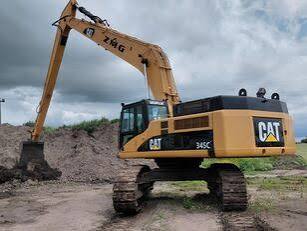

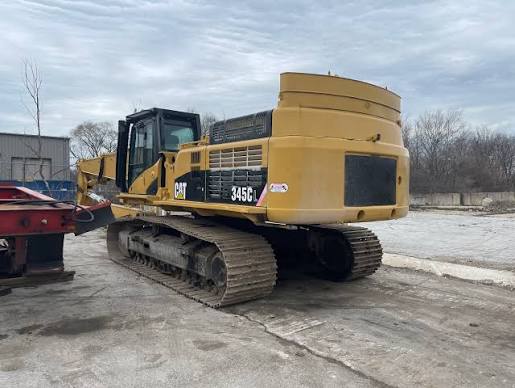

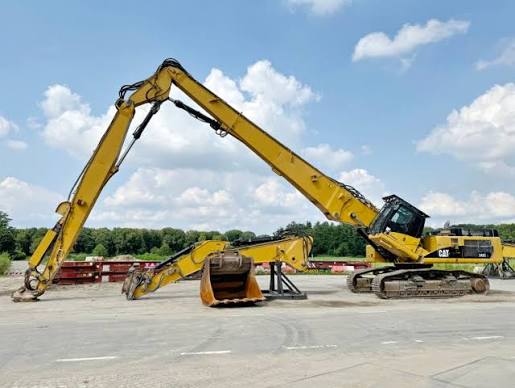

Caterpillar 345C L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

89 data points

Operating Specifications

Operating Specifications specifications
Operating Weight99,150 lb
Fuel Capacity186.0 gal
Hydraulic Pump Flow Capacity190.0 gal/min
Hydraulic System Fluid Capacity150.0 gal
Hydraulic System Relief Valve Pressure5,080 psi
Engine Oil Capacity11.0 gal
Cooling System Fluid Capacity16.0 gal
Swing Drive Fluid Capacity2.6 gal
Maximum Digging Depth352 in
Maximum Bucket Capacity5.00 yd³

Engine

Engine specifications
Displacement763 in³
Power Measured @1,800 rpm
Bore5 in
Stroke6 in
Net Power - ISO 9249345.0 hp
Net Power - SAE J1349345.0 hp
Net Power - EEC 80/1269345.0 hp

Weights

Weights specifications
Operating Weight99,150 lb
Operating Weight - Standard Undercarriage99,150 lb
Operating Weight - Long Undercarriage99,150 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing4,550 psi
Maximum Pressure - Travel5,080 psi
Boom Cylinder - Bore6 in
Boom Cylinder - Stroke62 in
Stick Cylinder - Bore8 in
Pilot System - Maximum Flow11.0 gal/min
Maximum Pressure - Equipment - Normal5,080 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Length of Track on Ground173 in
Tail Swing Radius149 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance53 in
Shipping Height149 in

Undercarriage

Undercarriage specifications
Track Gauge108 in
Number of Track Rollers per Side9
Max Travel Speed2.7 mph
Shoe Size30 in
Number of Shoes per Side52
Number of Carrier Rollers per Side2
Drawbar Pull75,920 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth340 in
Max Reach Along Ground493 in
Max Loading Height300 in
Max Vertical Wall Digging Depth234 in
Shipping Length of Unit469 in
Shipping Height of Unit149 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity4.60 yd³

Service Refill Capacities

Service Refill Capacities specifications
Cooling System16.0 gal
Hydraulic System - Including Tank150.0 gal
Final Drive - Each4.0 gal
Engine Oil11.0 gal
Hydraulic Tank64.0 gal
Fuel Tank Capacity186.0 gal
Swing Drive - Each2.6 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth324 in
Max Vertical Wall Digging Depth212 in
Max Loading Height294 in
Max Reach Along Ground479 in
Shipping Length of Unit469 in
Shipping Height of Unit144 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth301 in
Max Loading Height293 in
Max Vertical Wall Digging Depth205 in
Max Reach Along Ground462 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth283 in
Max Reach Along Ground445 in
Max Loading Height285 in
Max Vertical Wall Dig Depth190 in
Shipping Length of Unit468 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB 88 and ISO 10262-1998

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth352 in
Max Reach Along Ground510 in
Max Loading Height312 in
Max Vertical Wall Dig Depth235 in
Shipping Height of Unit142 in
Shipping Length of Unit489 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth336 in
Max Reach Along Ground497 in
Max Loading Height307 in
Max Vertical Wall Dig Depth215 in
Shipping Length of Unit490 in
Shipping Height of Unit138 in

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage52
Number of Track Rollers - Each Side - Long Undercarriage9
