Caterpillar

325B LN

Excavator

Operating Weight
59,679 lb
Max Digging Depth
282 in
Max Digging Depth
260 in
Net Power
168.0 hp
All excavators

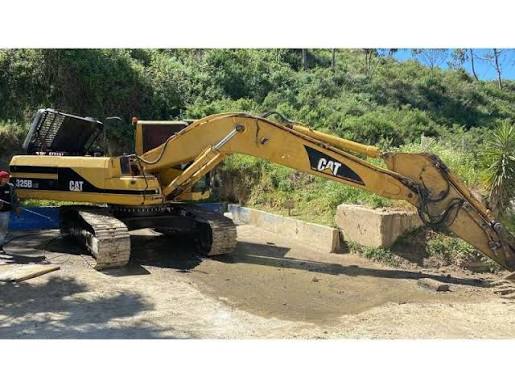

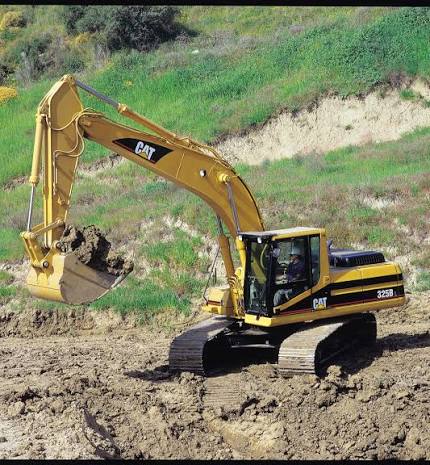

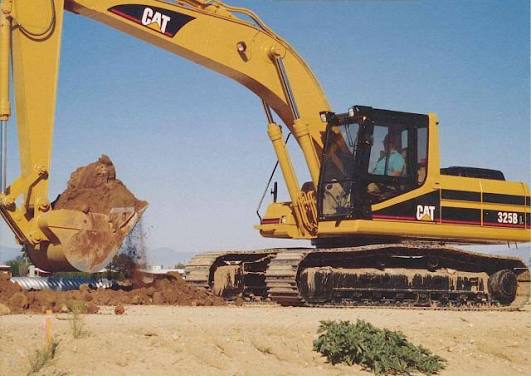

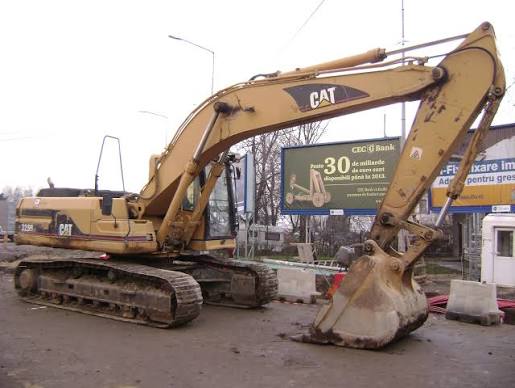

Caterpillar 325B LN Excavator
1 / 5
Image 1 of 5
Image: sodineg.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight59,679 lb
Fuel Capacity111.0 gal
Hydraulic Pump Flow Capacity111.0 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3116TA
Displacement403 in³
Net Power168.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab125 in
Length of Track on Ground150 in
Tail Swing Radius121 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Max Travel Speed3.2 mph
Shoe Size24 in
Drawbar Pull48,350 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth282 in
Max Reach Along Ground417 in
Max Loading Height278 in
Max Vertical Wall Digging Depth204 in
Max Cutting Height393 in
Shipping Length of Unit408 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth260 in
Max Vertical Wall Digging Depth189 in
Max Cutting Height384 in
Max Loading Height270 in
Max Reach Along Ground397 in
Shipping Length of Unit408 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth239 in
Max Cutting Height371 in
Max Loading Height250 in
Max Vertical Wall Digging Depth163 in
Max Reach Along Ground376 in
Shipping Length of Unit408 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth238 in
Max Cutting Height361 in
Max Reach Along Ground369 in
Max Loading Height240 in
Max Vertical Wall Dig Depth162 in
Shipping Length of Unit390 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth219 in
Max Reach Along Ground350 in
Max Cutting Height354 in
Max Loading Height233 in
Max Vertical Wall Dig Depth144 in
Shipping Height of Unit132 in
Shipping Length of Unit390 in
