Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

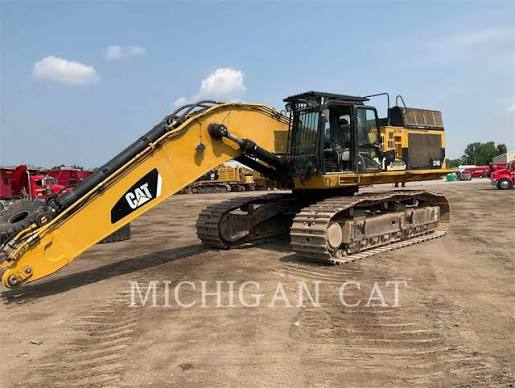

Image 1 of 5
Specifications
52 data points
Engine
| Engine Model | C15 ACERT |
|---|---|
| Displacement | 928 in³ |
| Engine Make | Caterpillar |
| Make | Cat |
| Bore | 5 in |
| Stroke | 7 in |
| Type | C15 ACERT |
Dimensions
| Ground Clearance | 33 in |
|---|---|
| Tail Swing Radius | 158 in |
| Digging Depth | 360 in |
| Digging Reach | 539 in |
| Track Gauge | 109 in |
| Cab height | 139 in |
| Track length | 231 in |
Undercarriage
| Number of Track Rollers per Side | 8 |
|---|---|
| Max Travel Speed | 2.6 mph |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 110,718 lb |
Fluid Capacities
| Fuel Tank | 247.1 gal |
|---|---|
| Hydraulic system | 186.3 gal |
| Engine Oil | 17.2 gal |
| Hydraulic Tank | 95.2 gal |
| Cooling system | 25.1 gal |
| Swing drive | 3.2 gal |
| Final Drive | 4.0 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 380 in |
|---|---|
| Max Reach Along Ground | 539 in |
| Max Loading Height | 354 in |
| Max Vertical Wall Digging Depth | 333 in |
| Shipping Length of Unit | 522 in |
| Shipping Height of Unit | 196 in |
| Bucket Digging Force - SAE | 66,881 lb |
| Bucket Digging Force - ISO | 76,300 lb |
| Maximum Reach at Ground Level | 560 in |
Swing Mechanism
| Swing Speed | 6 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 360 in |
|---|---|
| Max Vertical Wall Digging Depth | 306 in |
| Max Loading Height | 341 in |
| Shipping Length of Unit | 524 in |
| Shipping Height of Unit | 182 in |
| Bucket Digging Force - SAE | 66,881 lb |
| Bucket Digging Force - ISO | 76,300 lb |
| Maximum Reach at Ground Level | 539 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 339 in |
|---|---|
| Max Loading Height | 331 in |
| Max Vertical Wall Digging Depth | 278 in |
| Max Reach Along Ground | 520 in |
| Shipping Length of Unit | 526 in |
| Shipping Height of Unit | 176 in |
| Bucket Digging Force - SAE | 66,746 lb |
| Bucket Digging Force - ISO | 76,120 lb |
