Caterpillar

375

Excavator

Operating Weight
178,993 lb
Max Digging Depth
427 in
Max Digging Depth
379 in
Net Power
428.0 hp
All excavators

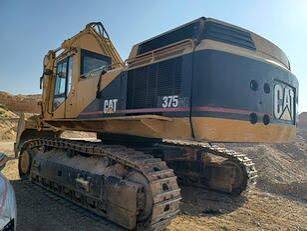

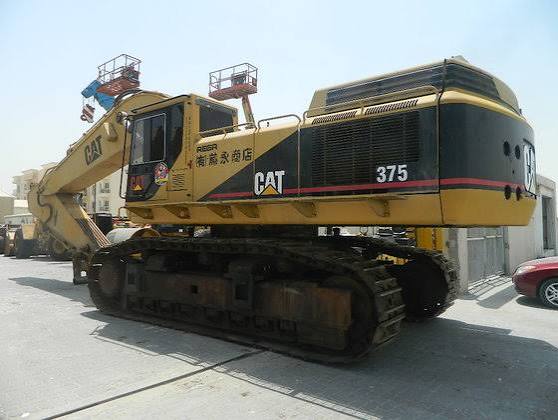

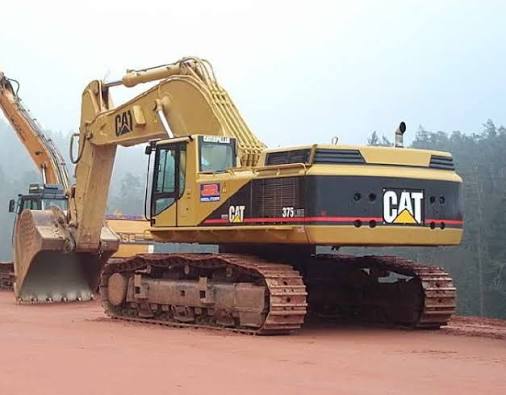

Caterpillar 375 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

86 data points

Operating Specifications

Operating Specifications specifications
Operating Weight178,993 lb
Fuel Capacity261.6 gal
Hydraulic Pump Flow Capacity227.2 gal/min
Hydraulic System Relief Valve Pressure4,980 psi
Maximum Digging Depth418 in

Engine

Engine specifications
Engine ModelCat 3406C Turbocharged ATAAC
Displacement893 in³
Net Power428.0 hp
Stroke7 in
Bore5 in
Net Power - ISO 9249428.0 hp
Net Power - SAE J1349428.0 hp
Net Power - EEC 80/1269428.0 hp

Weights

Weights specifications
Operating Weight - Standard Undercarriage173,100 lb
Operating Weight - Long Undercarriage179,800 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing3,980 psi
Maximum Pressure - Travel4,980 psi
Boom Cylinder - Bore8 in
Boom Cylinder - Stroke77 in
Stick Cylinder - Bore9 in
Stick Cylinder - Stroke89 in
13.213.2 gal/min
228228.0 gal/min
Maximum Pressure - Equipment - Normal4,550 psi
Swing System - Maximum Flow90.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab144 in
Length of Track on Ground181 in
Tail Swing Radius166 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance64 in

Undercarriage

Undercarriage specifications
Track Gauge109 in
Max Travel Speed2.8 mph
Shoe Size24 in
Drawbar Pull122,800 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth427 in
Max Reach Along Ground629 in
Max Loading Height408 in
Max Vertical Wall Digging Depth371 in
Max Cutting Height571 in
Shipping Length of Unit580 in
Shipping Height of Unit185 in

Service Refill Capacities

Service Refill Capacities specifications
Cooling System25.1 gal
Hydraulic System - Including Tank262.9 gal
Final Drive - Each6.6 gal
Engine Oil17.1 gal
Hydraulic Tank206.1 gal
Fuel Tank Capacity261.1 gal
Swing Drive - Each3.6 gal

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth379 in
Max Vertical Wall Digging Depth325 in
Max Cutting Height533 in
Max Loading Height380 in
Max Reach Along Ground577 in
Shipping Length of Unit580 in
Shipping Height of Unit185 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth384 in
Max Cutting Height536 in
Max Loading Height377 in
Max Vertical Wall Digging Depth307 in
Max Reach Along Ground582 in
Shipping Length of Unit580 in
Shipping Height of Unit185 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth326 in
Max Cutting Height529 in
Max Reach Along Ground535 in
Max Loading Height366 in
Max Vertical Wall Dig Depth289 in
Shipping Length of Unit580 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth418 in
Max Reach Along Ground618 in
Max Cutting Height572 in
Max Loading Height407 in
Max Vertical Wall Dig Depth367 in
Shipping Height of Unit206 in
Shipping Length of Unit563 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth320 in
Max Reach Along Ground516 in
Max Cutting Height510 in
Max Loading Height346 in
Max Vertical Wall Dig Depth281 in
Shipping Length of Unit519 in
Shipping Height of Unit193 in

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage51
Number of Track Rollers - Each Side - Long Undercarriage9
Standard with Long Undercarriage36 in
