Caterpillar

350 L

Excavator

Operating Weight
108,049 lb
Max Digging Depth
377 in
Max Digging Depth
330 in
Net Power
286.0 hp
All excavators

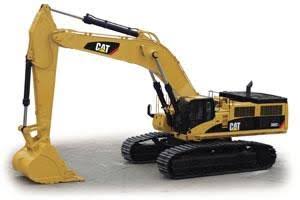

Caterpillar 350 L Excavator
1 / 5
Image 1 of 5
Image: cat.com

Specifications

57 data points

Operating Specifications

Operating Specifications specifications
Operating Weight108,049 lb
Fuel Capacity185.0 gal
Hydraulic Pump Flow Capacity203.5 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3306ATAAC
Displacement641 in³
Net Power286.0 hp

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab138 in
Length of Track on Ground178 in
Tail Swing Radius142 in
Width to Outside of Tracks131 in
Removal Counterweight Clearance56 in

Undercarriage

Undercarriage specifications
Track Gauge101 in
Max Travel Speed2.9 mph
Shoe Size30 in
Drawbar Pull75,600 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth377 in
Max Reach Along Ground530 in
Max Loading Height333 in
Max Vertical Wall Digging Depth324 in
Max Cutting Height475 in
Shipping Length of Unit481 in
Shipping Height of Unit149 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth330 in
Max Vertical Wall Digging Depth281 in
Max Cutting Height458 in
Max Loading Height316 in
Max Reach Along Ground486 in
Shipping Length of Unit481 in
Shipping Height of Unit149 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth308 in
Max Cutting Height449 in
Max Loading Height309 in
Max Vertical Wall Digging Depth263 in
Max Reach Along Ground466 in
Shipping Length of Unit481 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth315 in
Max Cutting Height454 in
Max Reach Along Ground470 in
Max Loading Height315 in
Max Vertical Wall Dig Depth276 in
Shipping Length of Unit463 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth288 in
Max Reach Along Ground444 in
Max Cutting Height437 in
Max Loading Height292 in
Max Vertical Wall Dig Depth245 in
Shipping Height of Unit157 in
Shipping Length of Unit463 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth267 in
Max Reach Along Ground421 in
Max Cutting Height422 in
Max Loading Height278 in
Max Vertical Wall Dig Depth214 in
Shipping Length of Unit463 in
Shipping Height of Unit157 in
